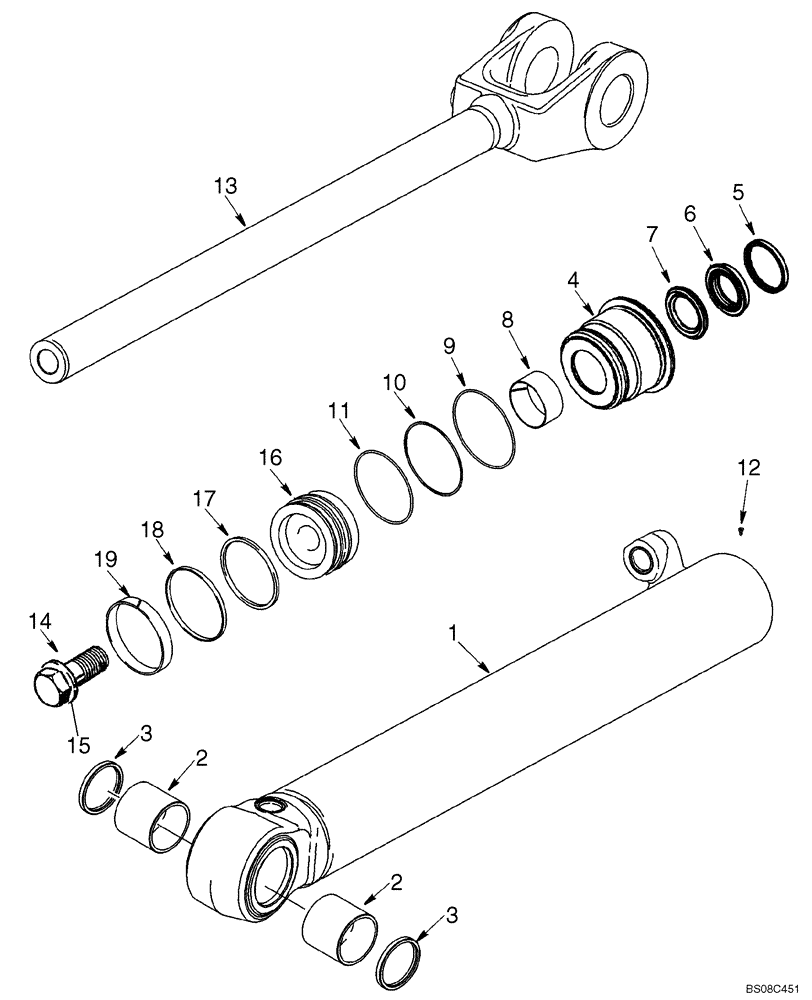

Запчасти Case 621E (08-15) - CYLINDER ASSY - LOADER LIFT (08) - HYDRAULICS

87577649

LIFT CYLINDER

120.65 mm ID x 787.6 mm strk; Incl. Refs. 1 - 19

2шт.

87577650R

REMAN-HYD CYLINDER

621E Tier 3 (8/07-), Reman for New P/N 87577649

2шт.

87577650C

CORE-HYD CYLINDER

Return Number

1шт.

87598751

SEAL KIT

Lift Cylinder; Incl. Refs. 5 - 11, 17, 19, Also Includes 446481A1 Seal For Service Replacement of Ref. 18 Piston Seal

1шт.

1

87586627

TUBE,120.6 mm ID x 1029.2 mm L

Incl. Ref. 2

1шт.

2

87625615

BUSHING,63.84mm ID x 76.32mm OD x 36mm L

2шт.

3

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

2шт.

REF

INSTRUCTION

GLAND ASSY. Cylinder; Incl. Refs. 4 - 11, Order Component Parts Separately

1шт.

4

87586628

GLAND

1шт.

5

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

1шт.

1542879C1

SEAL KIT,63.5mm Rod x 88.9mm Bore

Seal; Incl. Refs. 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

Seal, Rod

1шт.

7

NSS

NOT SOLD SEPARAT

Seal, Buffer

1шт.

8

336041A1

BUSHING

Rod

1шт.

9

238-5246

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

1шт.

10

446178A1

SEALING RING,110.41mm ID x 116.35mm OD x 1.09mm Thk

Backup

1шт.

11

238-5245

O-RING,0.139" Thk x 4.359" ID, -245, Cl 5, 75 Duro

1шт.

12

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

13

87318062

PISTON ROD,63.5mm OD x 1085.7mm L

63.5 Diameter

1шт.

14

86982444

SPECIAL BOLT,Hex, 12, 1 1/2 x 3.50"

Incl. Ref. 15

1шт.

15

NSS

NOT SOLD SEPARAT

Washer

1шт.

REF

INSTRUCTION

PISTON ASSY. Incl. Refs. 16 - 19, Order Component Parts Separately

1шт.

16

87586630

PISTON ROD/GLAND

120.7 x 63.5

1шт.

17

87403649

SEALING RING,Square, 5.28mm Thk x 107.06mm ID

Loader; 4.75 Bore

1шт.

18

446481A1

SEAL,117.2mm ID x 122.15mm OD x 6.96mm Thk

Piston

1шт.

19

446195A1

SEALING RING,Split, 114.27mm ID x 120.62mm OD x 19.05mm Thk

Wear Ring

1шт.
