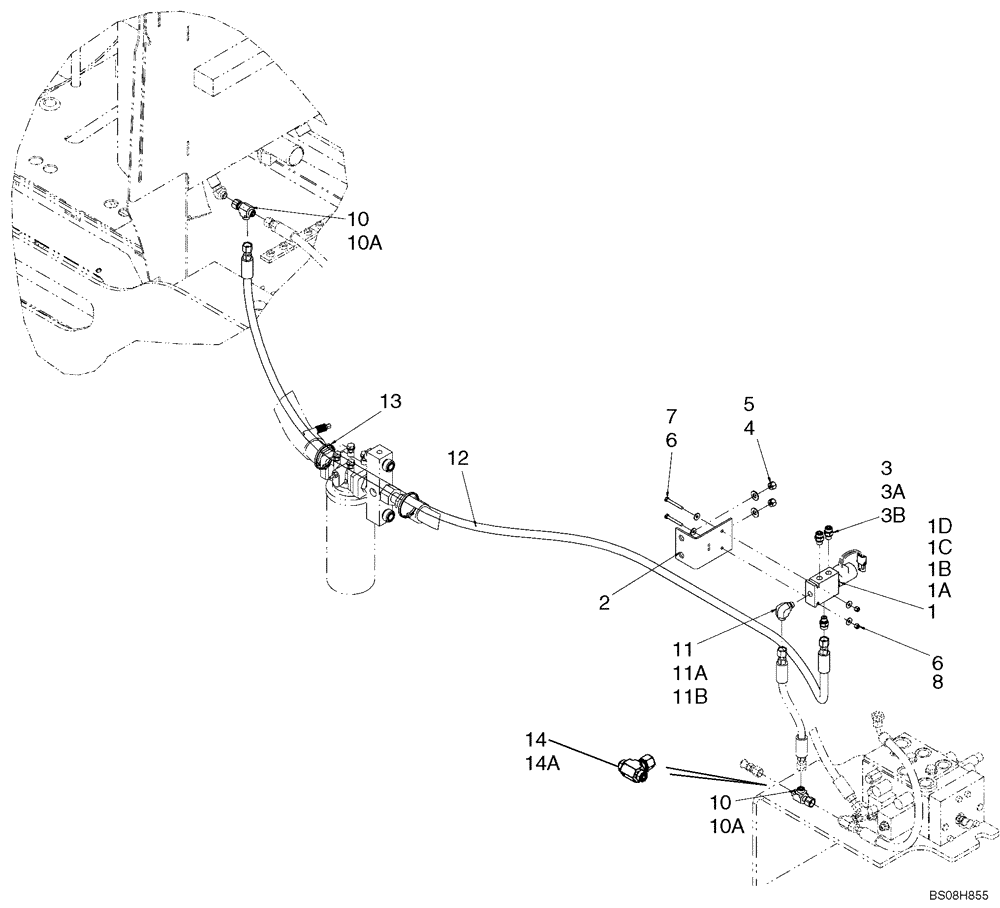

Запчасти Case 621E (08-14) - HYDRAULICS - COUPLER LOCKING (08) - HYDRAULICS

1

379139A1

SOLENOID VALVE

Coupler Locking; Incl. Refs. 1A - 1C, Serial Range: -N9F206858

1шт.

1

84139102

SOLENOID VALVE

, Start Serial: N9F206859

1шт.

1a

NSS

NOT SOLD SEPARAT

Body

1шт.

1b

NSS

NOT SOLD SEPARAT

Coil

1шт.

1c

8605216

SOLENOID VALVE

Component Parts Not Serviced Separately; Order 8605153 Seal Kit; Incl. 1C

1шт.

1d

124639A1

SEAL KIT

Includes (4) O-Rings and (6) Backup Rings, Which Are Not Serviced Separately

1шт.

2

87404018

BRACKET

Coupler Solenoid

1шт.

3

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 3A, 3B

3шт.

3a

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

3b

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

4

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

5

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

6

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

7

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

2шт.

8

832-10406

NUT,M6 x 1, Cl 8

2шт.

10

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. Ref. 10A

1-2шт.

10a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

11

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 11A, 11B

1шт.

11a

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

11b

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

12

87581937

HYDRAULIC HOSE,9.52 mm ID x 2558.00 mm, SAE 100R1

Coupler Tank

1шт.

13

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Wire Tie

2шт.

14

701-434

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. Ref. 14A; If used

1шт.

14a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
