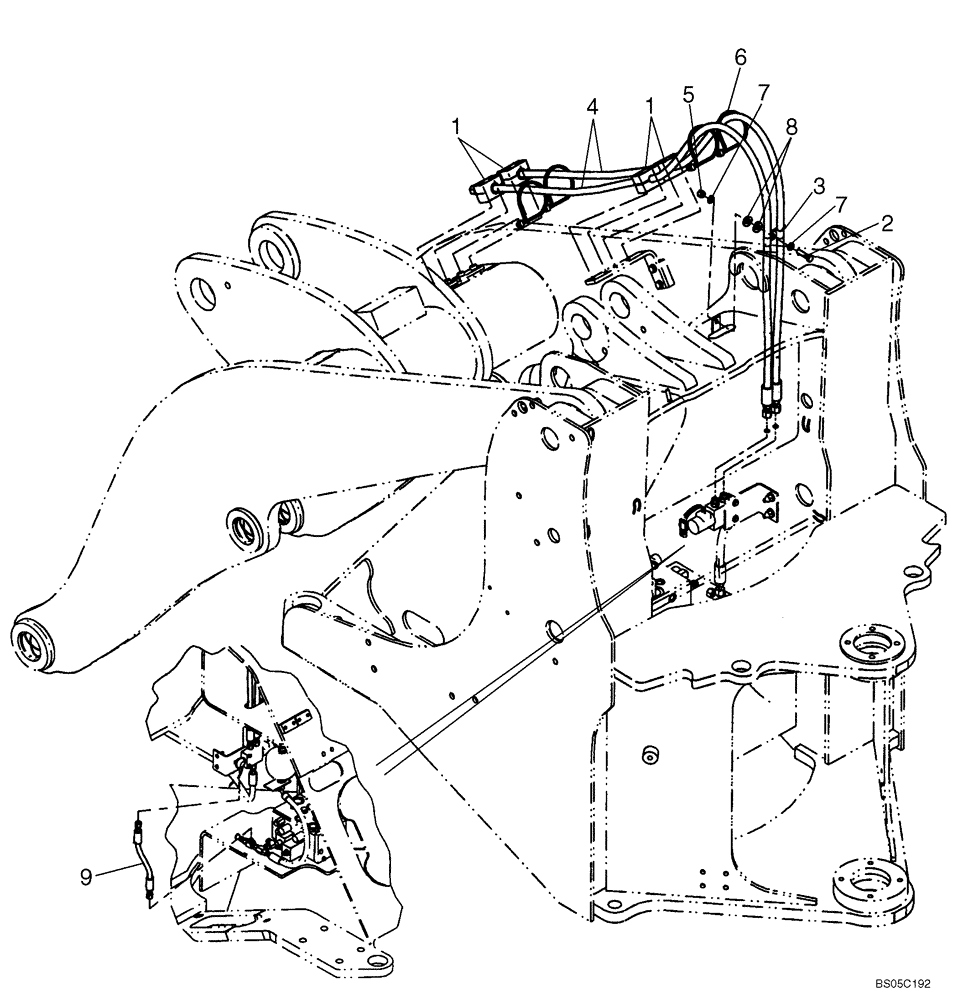

Запчасти Case 621E (08-11) - HYDRAULICS - COUPLER (Z BAR LOADER) (08) - HYDRAULICS

REF

INSTRUCTION

Z-BAR LOADER

1шт.

1

379374A1

BLOCK

Mounting

4шт.

2

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

1шт.

3

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

2шт.

4

87403305

HOSE

Coupler; 2088 mm (82-13/64 in)

2шт.

5

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

6

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

4шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

8

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

9

87403985

HOSE

Coupler Pressure; 308mm (12-1/8 in )

1шт.
