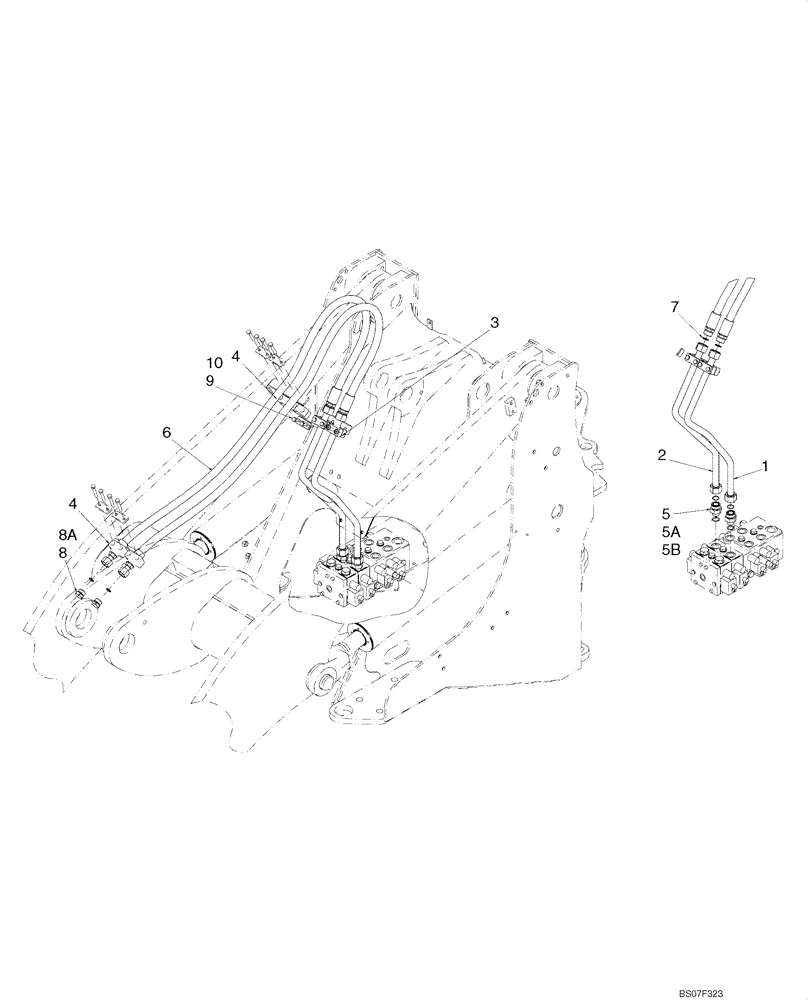

Запчасти Case 621E (08-09) - HYDRAULICS - LOADER AUXILIARY (XR LOADER) (08) - HYDRAULICS

REF

INSTRUCTION

XR LOADER, THIRD SPOOL HYDRAULICS

1шт.

1

86983688

HYD TUBE,25.40mm OD

Left Hand

1шт.

2

86983689

HYD TUBE,25.40mm OD x 585mm, 178 mm L

Right Hand

1шт.

3

367489A1

BLOCK

2шт.

4

372453A1

BLOCK

4шт.

5

700-166

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. Refs. 5A, 5B

2шт.

5a

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

5b

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

6

437523A1

HOSE ASSY.

Third Spool; 2143 mm (84 - 3/8 in)

2шт.

7

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

8

701-914

PLUG,Hex, 1-3/16" - 12 ORFS

Incl. Ref. 8A

2шт.

8a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

9

367658A1

PLATE

2шт.

10

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

4шт.
