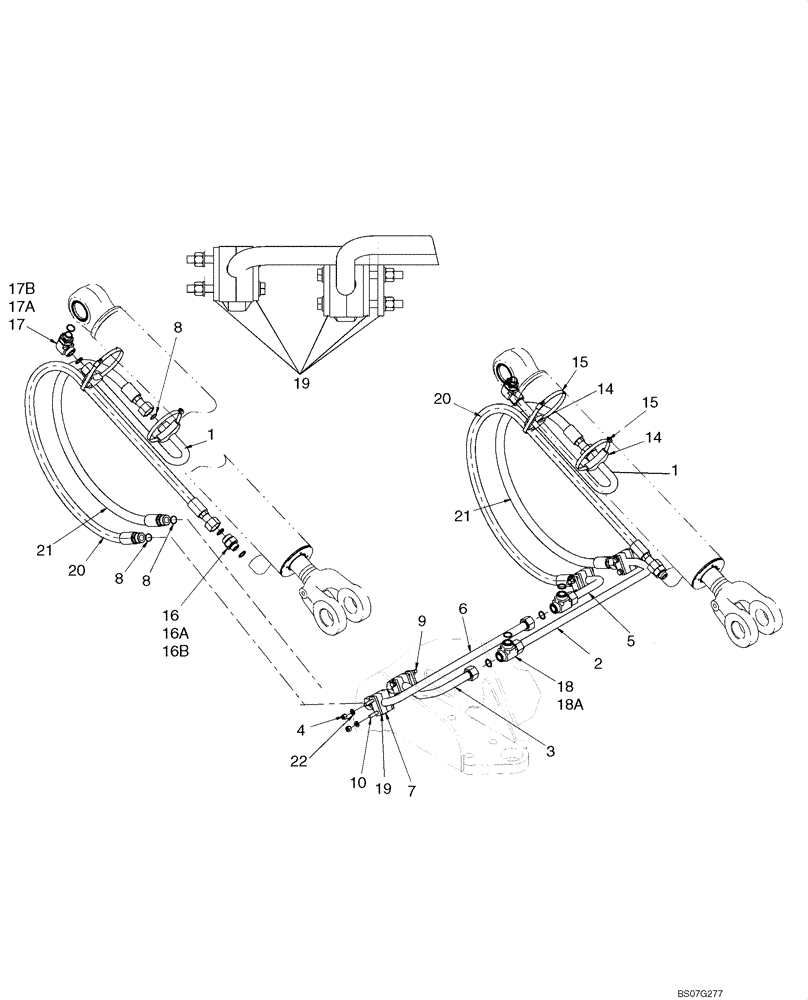

Запчасти Case 621E (08-06) - HYDRAULICS - LOADER LIFT (XT LOADER) (08) - HYDRAULICS

REF

INSTRUCTION

LOADER LIFT; XT-LOADER

1шт.

1

87448548

HYD TUBE,22mm ID x 25mm OD x 465mm L

Lift Cylinder

2шт.

2

8606092

TUBE,22mm ID x 25mm OD x 659mm L

Left Hand; Head End

1шт.

3

87389172

HYD TUBE,19.4 mm ID x 25.40 mm OD x 222, 161.5 mm L

Right Hand; Head End

1шт.

4

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

5

8606098

TUBE,25.40 mm OD x 162, 142 mm L

Rod End; Left Hand

1шт.

6

8606100

TUBE,25.40mm OD x 110, 659mm L

Rod End; Right Hand

1шт.

7

367489A1

BLOCK

Mounting

4шт.

8

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

6шт.

9

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

4шт.

10

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

4шт.

14

391133A1

CLAMP

4шт.

15

214-14104

HOSE CLAMP,155.45mm - 177.8mm

Replaces 214-14100 Clamp Used On Some Models

4шт.

16

700-166

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. Refs. 16A, 16B

2шт.

16a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

16b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

17

700-313

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. Refs. 17A, 17B

2шт.

17a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

17b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

18

701-410

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

Incl. Refs. 18A

2шт.

18a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

3шт.

19

367658A1

PLATE

Clamp Cover

10шт.

20

87448550

HOSE ASSY.

1802 mm ( 70 7/8 in); Lift Cylinder

2шт.

21

86983387

HOSE ASSY.

1320 mm ( 52 in ); Lift Cylinder

2шт.

22

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

16шт.
