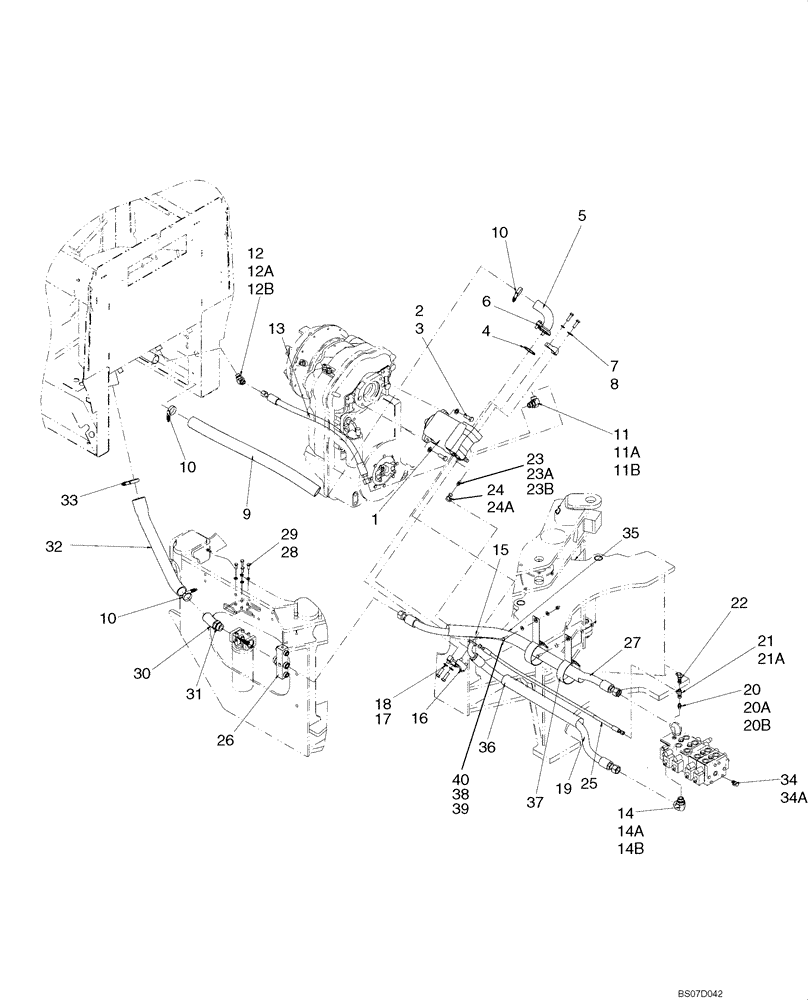

Запчасти Case 621E (08-03) - HYDRAULICS - RESERVOIR TO HYDRAULIC PUMP (08) - HYDRAULICS

REF

INSTRUCTION

RESERVOIR TO PUMP AND LOADER CONTROL VALVE

1шт.

1

377608A1

PUMP

See Figure 08-04

1шт.

76082592R

REMAN-HYD PUMP

621E TIER 3 (8/07-), Reman for new P/N 377608A1

1шт.

76082592C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

3

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

2шт.

4

238-5232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

1шт.

5

388509A1

TUBE,50.8 mm OD, 130, 100 mm Length

Pump Suction

1шт.

6

L14386

CLAMP

2шт.

7

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

8

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

9

388556A1

HOSE ASSY.

Suction, Reservoir To Pump Inlet; 860 mm (33-7/8 in)

1шт.

10

254026A1

HOSE CLAMP,44.45mm - 66.67mm

Constant Torque

3шт.

11

86579697

ELBOW,90 Degree, 1-3/16"-12 ORFS x M27 x 2.0 ORB

Incl. Refs. 11A, 11B

1шт.

11a

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss

1шт.

11b

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

12

86639053

ELBOW,45 Degree, 1"-14 ORFS x M22 x 1.5 ORB

Incl. Refs. 12A, 12B

1шт.

12a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

12b

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss

1шт.

13

87629991

HOSE

Case Drain; 838 mm (33 in)

1шт.

14

86580180

90 ELBOW,90 Degree, 1-7/16"-12 ORFS x M33 x 2.0 ORB

Incl. Refs. 14A, 14B

1шт.

14a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

14b

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss

1шт.

15

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

1шт.

16

86985567

FLANGE

2шт.

17

895-11014

WASHER,M14 x 28 x 2.5

4шт.

18

627-14045

BOLT,Hex, M14 x 2 x 45mm, Cl 10.9, Full Thd

4шт.

19

388555A2

HOSE ASSY.

1337 mm (52-5/8 in); Pressure

1шт.

20

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl. Refs. 20A, 20B

1шт.

20a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

20b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

Boss

1шт.

21

701-421

TEE,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl. Ref. 21A

1шт.

21a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

2шт.

22

190117A1

COUPLING

1шт.

23

86593173

HYD CONNECTOR,9/16"-18 ORFS x M12 x 1.5 ORB

Incl. Refs. 23A, 23B

1шт.

23a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

23b

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

Boss

1шт.

24

84989411

ELBOW,90 Degree, 9/16"-18 ORFS x 9/16"-18 Fem Sw

Incl. Refs. 24A

1шт.

24a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

25

388558A1

HOSE ASSY.

Load Sensing; 1327 mm (52-1/4 in)

1шт.

26

87577181

MANIFOLD VALVE

Filter

1шт.

27

365516A2

HOSE ASSY.

Valve Return; 1613 mm (63 - 1/2 in)

1шт.

28

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

29

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss

4шт.

30

390208A2

ADAPTER

1шт.

31

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.

32

87629990

HOSE

Filter Return; 561mm (22 - 3/32in)

1шт.

33

L115548

CLAMP,57.15mm - 79.38mm

1шт.

34

178889A1

DIAGNOSTIC COUPLER

Diagnostic; Incl. Ref. 34A

1шт.

34a

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

35

401526A1

HOSE PROTECTION,60mm ID x 1200mm L

1шт.

36

401525A1

HOSE PROTECTION,60.00 mm ID x 600.00 mm

1шт.

37

401527A2

STRAP

Articulation Hoses

2шт.

38

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

39

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

40

832-10410

NUT,M10 x 1.5, Cl 8

1шт.
