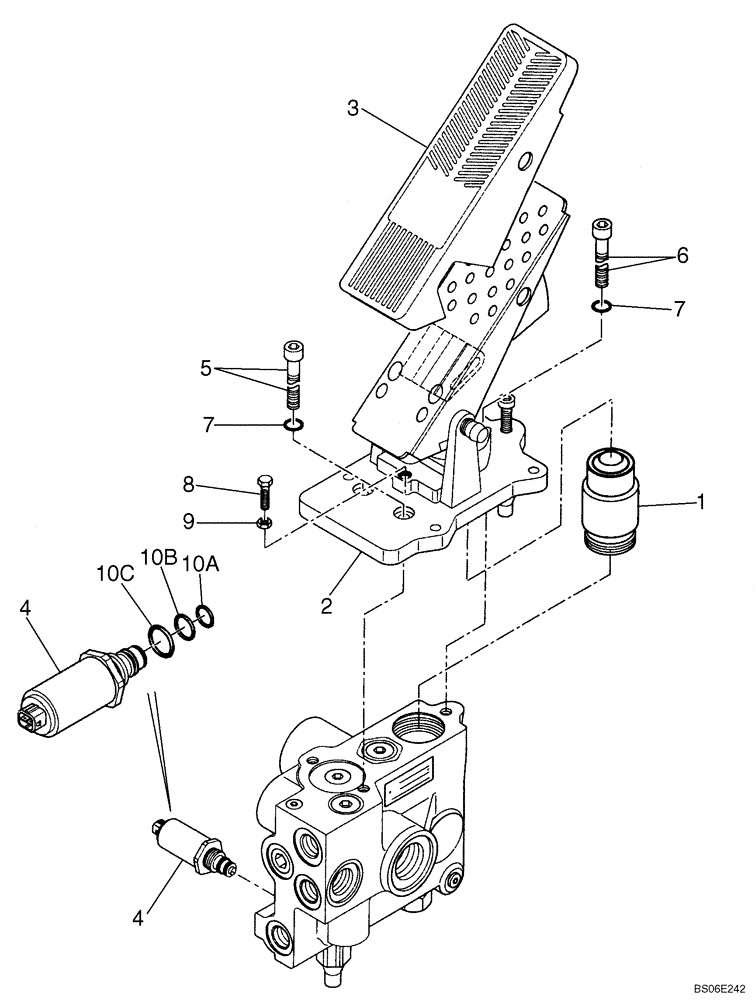

Запчасти Case 621E (07-05) - VALVE ASSY - BRAKE (07) - BRAKES

87360067

BRAKE VALVE

93.5 Bar Pressure Setting; Incl. Refs. 1 - 10C; For Brake Pressure Switch, See Figure 04-03; Used With Front Axle 87358580 and Rear Axle 87358583, Serial Range: -N8F203848

1шт.

87360066

BRAKE VALVE

65 Bar Pressure Setting; Incl. Refs. 1 - 10C; For Brake Pressure Switch, See Figure 04-03; Used With Front Axle 87550687 and Rear Axle 87550688, Start Serial: N8F203848

1шт.

1

87398113

ACTUATOR

1шт.

2

87398114

PEDAL

1шт.

3

383869A2

RUBBER PEDAL PAD

1шт.

4

8604506

SOLENOID VALVE

1шт.

5

864-8025

HEX SOC SCREW,M8 x 25mm, Cl 8.8

2шт.

6

864-8030

HEX SOC SCREW,M8 x 30mm, Cl 8.8

1шт.

7

892-11008

LOCK WASHER,8mm ID

1шт.

8

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

1шт.

9

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

87398116

SEAL KIT

Incl. Refs. 10A - 10C

1шт.

10a

NSS

NOT SOLD SEPARAT

O-RING 8.9 x 1.5

1шт.

10b

NSS

NOT SOLD SEPARAT

O-RING 10.72 x 1.78

1шт.

10c

NSS

NOT SOLD SEPARAT

O-RING 15 x 2

1шт.
