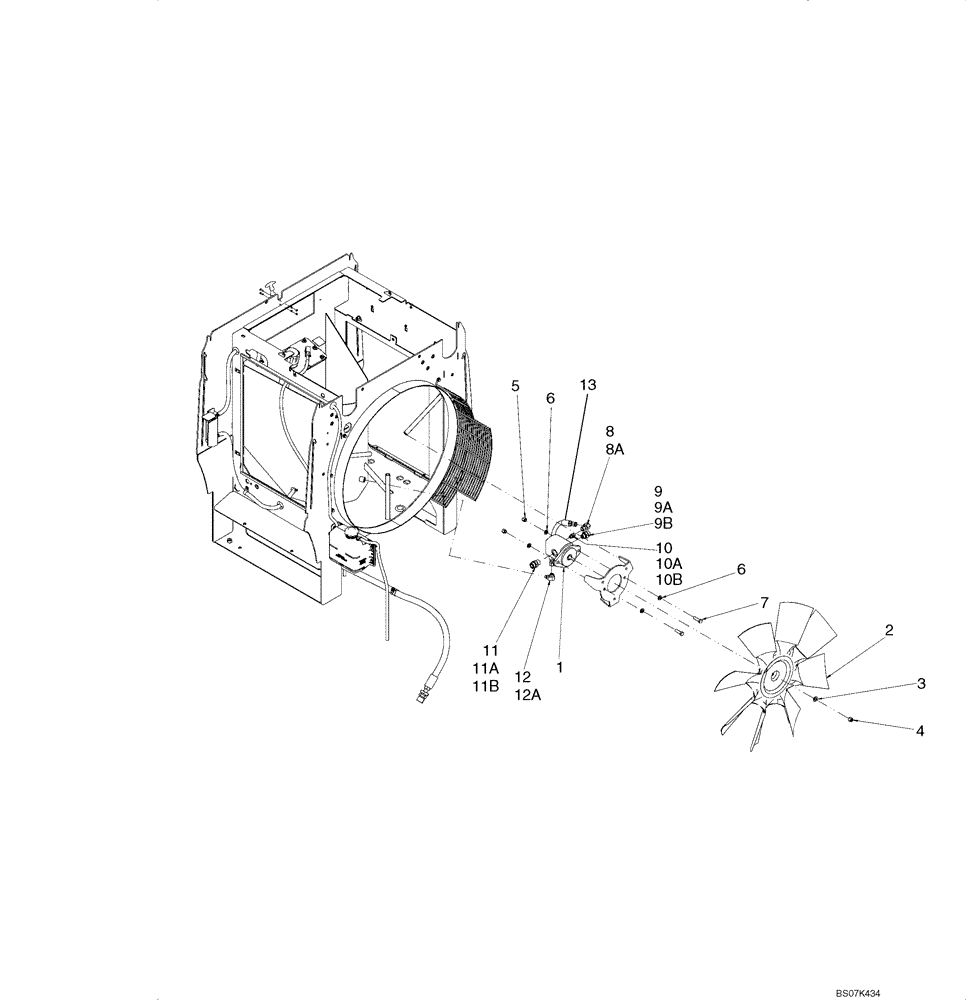

Запчасти Case 621E (02-05) - FAN DRIVE (02) - ENGINE

REF

INSTRUCTION

FAN DRIVE MOUNTING, FOR HYDRAULICS AND FAN VALVES SEE FIGURES 08-22 - 08-24A

1шт.

1

8500105

HYDRAULIC MOTOR,GEAR, 23 CC

Reversible Fan; Incl. 1A

1шт.

8500105R

REMAN-HYD MOTOR

621E TIER 3 (8/07-)

1шт.

8500105C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

1a

86991683

SEAL KIT

Seals, For Fan Drive Motor; Not Illustrated

1шт.

2

87700025

FAN,8 Blades, 711.2mm OD

Assy, Replaces 8500471

1шт.

3

496-21053

WASHER,17/32" x 1 1/16" x .134"

1шт.

4

232-2448

NUT,1/2"-20, GC

1шт.

5

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

7

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

8

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

Incl. Ref. 8A

1шт.

8a

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

9

86579681

HYD CONNECTOR,1-3/16"-12 ORFS x M22 x 1.5 ORB

Incl. Refs. 9A, 9B

1шт.

9a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

9b

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

10

86579671

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORB

1шт.

10a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

10b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

Boss Seal

1шт.

11

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

Incl. Refs. 11A, 11B

1шт.

11a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

11b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

12

86579686

90 ELBOW,11/16"-16 ORFS x M14 x 1.5 ORB

Incl. Ref. 12A

1шт.

12a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

13

8500183

FLEXIBLE HOSE

Fan Motor Drain, 342 mm (13 - 15/32 in)

1шт.
