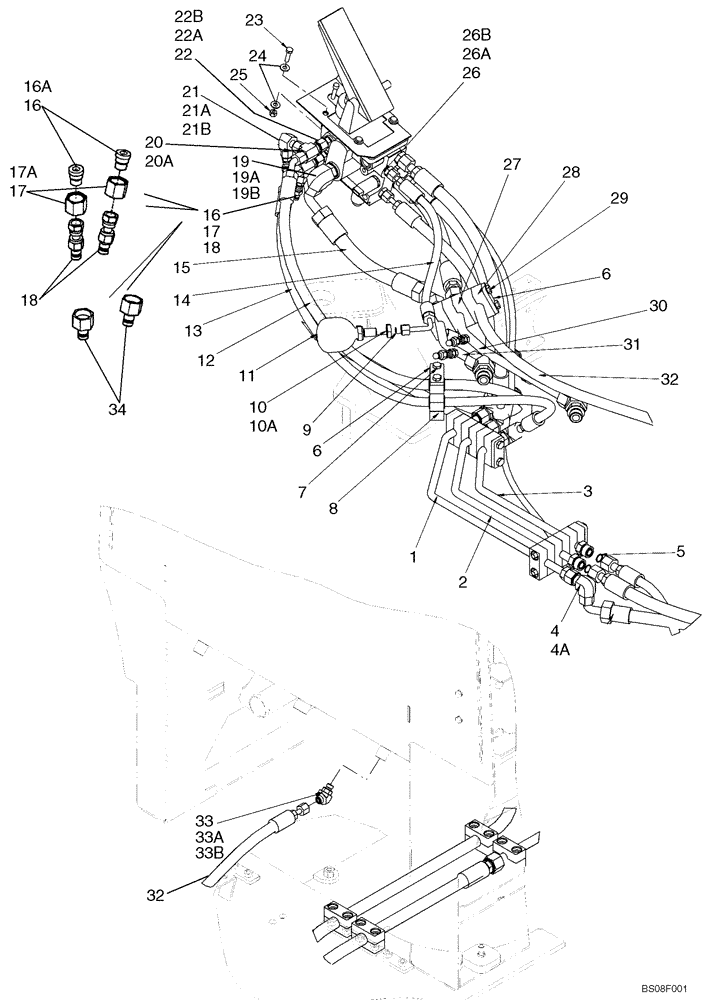

Запчасти Case 621E (07-03D) - HYDRAULICS - BRAKE, MAIN - RESERVOIR (07) - BRAKES

1

87326263

TUBE,15.88 mm OD

Fan Supply

1шт.

2

87326262

TUBE,15.88 mm OD

Brake Supply

1шт.

3

87326268

TUBE,15.88 mm OD

Rear Axle Brake

1шт.

4

701-361

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Female ORFS

1шт.

4a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

5

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

3шт.

6

367658A1

PLATE

Clamp Cover

3шт.

7

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

2шт.

8

367489A1

BLOCK

Tube Mounting

2шт.

9

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

10

701-909

NUT,11/16" - 16

Incl. Ref. 10A

1шт.

10a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

11

8500209

ACCUMULATOR

Parking Brake

1шт.

12

87689318

HOSE ASSY.

Front Axle Brake; 3168 mm ( 124 - 3/4 in )

1шт.

13

87325999

HOSE ASSY.

Rear Axle Brake; 1206mm ( 47 - 1/2 in )

1шт.

14

87325996

HOSE ASSY.

461 mm (18-1/4 in); Parking Brake Accumulator

1шт.

15

87521823

HOSE ASSY.

Front Accumulator; 411mm ( 16-1/4 in )

1шт.

16

201-110

REDUCER,9/16" - 18 Male ORFS x 13/16" - 16 Female ORFS

Incl. Ref. 16A; If Used

2шт.

16a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

17

703-902

TUBE NUT,13/16" - 16

Incl. Ref. 17A; If Used

2шт.

17a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

18

190117A1

COUPLING

Diagnostic; If Used

2шт.

19

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 19A, 19B

1шт.

19a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

19b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

20

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl. Ref. 20A

2шт.

20a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

21

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl. Refs. 21A, 21B

1шт.

21a

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

21b

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

22

700-169

HYD CONNECTOR,13/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl. Refs. 22A, 22B

2шт.

22a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

22b

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

23

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

Replaces 627-8030 M8 x 30 Bolt Used On Some Models

4шт.

24

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

25

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

26

700-157

HYD CONNECTOR,11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl. Refs. 26A, 26B

2шт.

26a

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

26b

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

27

379374A1

BLOCK

Tube Mounting

2шт.

28

8501052

SPECIAL CLAMP

Tube Mounting

1шт.

29

827-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 10.9

2шт.

30

87529279

TUBE,19.055 mm OD x 424 mm L

Rear Brake Accumulator

1шт.

31

87354290

TUBE,19.05 mm OD

Front Brake Accumulator

1шт.

32

87326000

HYDRAULIC HOSE,0.50" mm ID x 1291 mm L

Tank Reference; 1291mm ( 51 in )

1шт.

33

700-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. Refs. 33A, 33B

1шт.

33a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

33b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

34

190316A1

COUPLING

Diagnostic; If Used

2шт.
