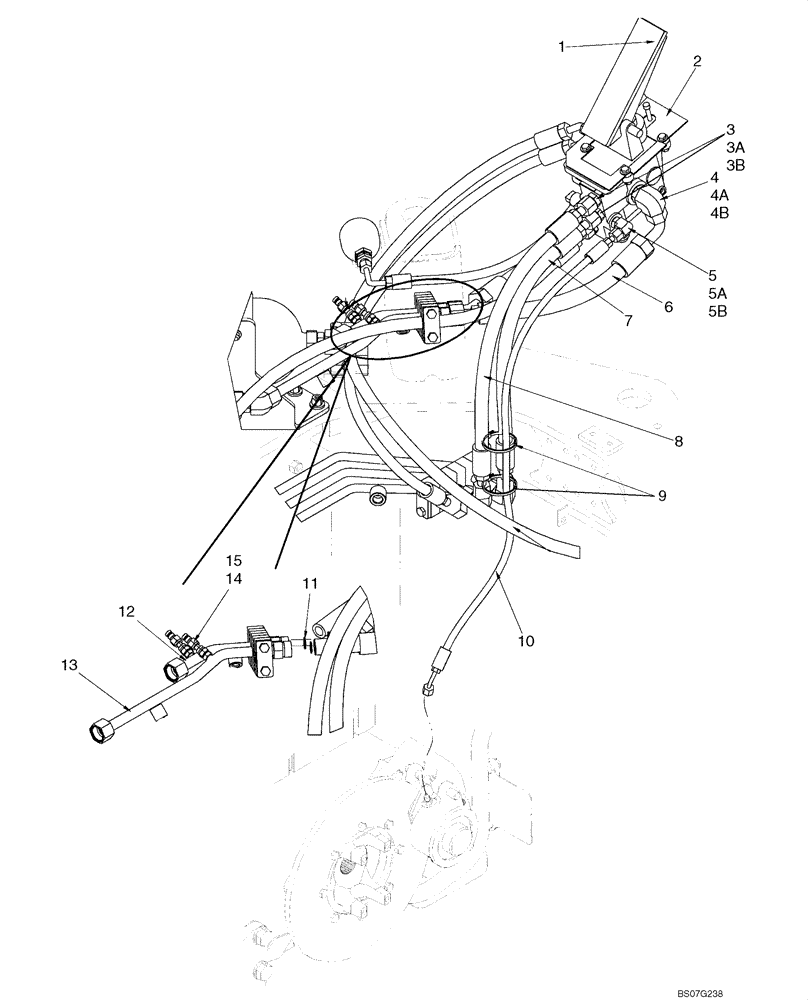

Запчасти Case 621E (07-03C) - HYDRAULICS - BRAKE, MAIN - PARKING BRAKE (07) - BRAKES
№
Артикул
Название
Примечание
Количество
REF
INSTRUCTION
BRAKE VALVE TO PARKING BRAKE, BRAKE VALVE AND PUMP DISCHARGE HOSING, REAR ACCUMULATOR HOSING
1шт.
2
87607227
PLATE
Brake Valve
1шт.
1
87360067
BRAKE VALVE
93.5 Bar Pressure Setting; See Figure 07-05; Used With Front Axle 87358580 and Rear Axle 87358583, Serial Range: -N8F203848
1шт.
1
87360066
BRAKE VALVE
65 Bar Pressure Setting; See Figure 07-05; Used With Front Axle 87550687 and Rear Axle 87550688, Start Serial: N8F203848
1шт.
3
700-115
HYD CONNECTOR,1" - 14 Male ORFS x M18 x 1.5 Male ORB
Incl. 3A, 3B
2шт.
3a
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
Face Seal
1шт.
3b
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
4
700-307
ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB
Incl. 4A, 4B
1шт.
4a
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
Face Seal
1шт.
4b
637-64236
O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro
Boss Seal
1шт.
5
700-368
ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M16 x 1.5 Male ORB
Incl. 5A, 5B
1шт.
5a
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
Face Seal
1шт.
5b
637-63133
O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro
Boss Seal
1шт.
6
87377313
HOSE ASSY.
Rear Accumulator; 448mm (17-1/2 in); If Used
1шт.
7
87354481
HOSE ASSY.
Brake Pump Discharge; 618mm (24-1/3 in)
1шт.
6
87325995
HOSE ASSY.
Rear Accumulator; 439 mm ( 17-9/32 in ); If Used
1шт.
8
87354480
HOSE ASSY.
Brake Valve Discharge; 668mm (26-1/4 in)
1шт.
9
L11541
CABLE TIE,203.2mm L, Nylon
CABLE STRAP
2шт.
10
87325997
HOSE ASSY.
Parking Brake; 1070mm (43 in)
1шт.
11
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
Face Seal
2шт.
12
87354290
TUBE,19.05 mm OD
Front Brake Accumulator
1шт.
13
87529279
TUBE,19.055 mm OD x 424 mm L
Rear Brake Accumulator
1шт.
14
190117A1
COUPLING
Diagnostic
2шт.
15
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
2шт.
Выбрано товаров: 24
