(07-03B) - HYDRAULICS - BRAKE, MAIN - ACCUMULATOR

Запчасти Case 621E (07-03B) - HYDRAULICS - BRAKE, MAIN - ACCUMULATOR (07) - BRAKES

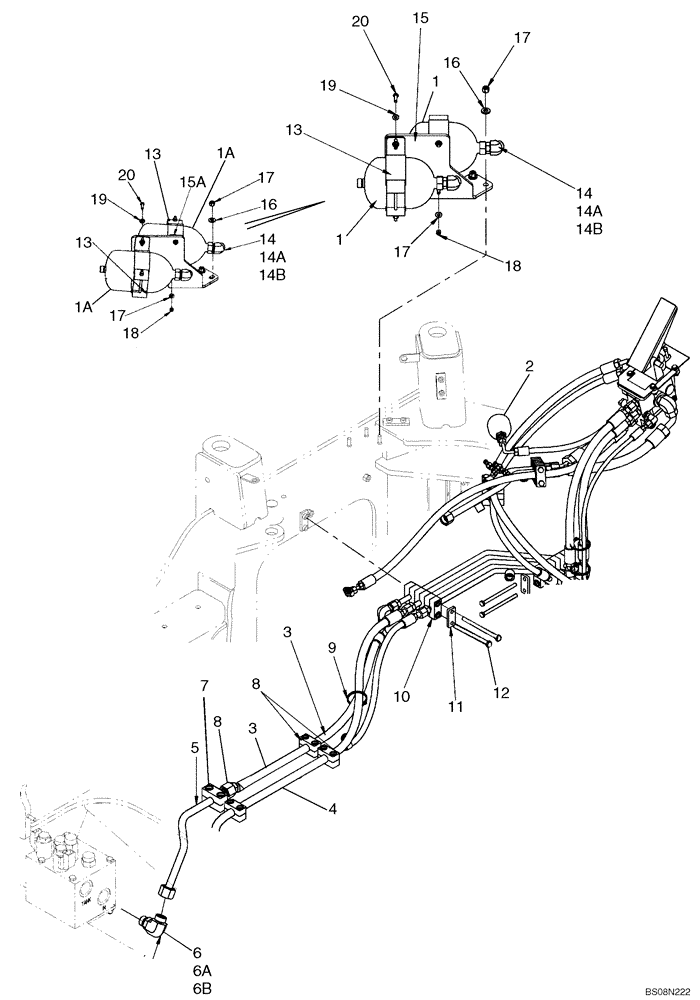

Схема запчастей Case 621E - (07-03B) - HYDRAULICS - BRAKE, MAIN - ACCUMULATOR (07) - BRAKES
19
17
15
17
12
16
2
14b
1
17
14a
8
8
10
14
7
17
14
4
6a
5
6
13
18
9
6b
14a
1
15a
1a
14b
1a
18
3
13
13
20
3
20
16
11
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

SERVICE AND PARKING BRAKE ACCUMULATORS, FAN SUPPLY AND PUMP PRESSURE LINE MOUNTING

1шт.

87741069

CONVERSION KIT

For Conversion From 2.8L to 3.8L Accumulators; Incl. (2) 87728740 Accumulators, (2) 87728742 Redundant Brake Switches, (1) 87728741 Brake Pressure Warning Switch, (1) 87736954 Accumulator Bracket

1шт.

1

87741066

ACCUMULATOR

Brake, 2.8L; 278 mm (10 - 15/16 in) Long; Replaces 8603020; Prior To P.I.N. N8F204751

2шт.

1a

87728740

ACCUMULATOR

Service Brake, 3.5L, 334mm L (13 - 9/64 in), P.I.N. N8F204751 And After

2шт.

2

8500209

ACCUMULATOR

Parking Brake

1шт.

3

87658724

HOSE ASSY.

Fan Supply; 1049 mm ( 41 - 5/16 in)

1шт.

4

87377350

HOSE ASSY.

Brake Pump Pressure; 2491 mm (98 - 1/16 in)

1шт.

5

87658725

TUBE,19.05 mm OD x 290 mm L

Fan Supply

1шт.

6

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 6A, 6B

2шт.

6a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

6b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

7

379374A1

BLOCK

Hose Mounting

1шт.

8

367489A1

BLOCK

Hose Mounting

3шт.

9

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

10

8500210

CLAMP

Tube Mounting

5шт.

11

367658A1

PLATE

Clamp Cover

1шт.

12

827-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 10.9

4шт.

13

8501315

CLAMP,167mm - 175mm

Accumulator

2шт.

14

700-387

ELBOW,45 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. Refs. 14A, 14B

1шт.

14a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

14b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

15

87326008

BRACKET

Brake Accumulator; For Use With 2.8L Brake Accumulators P/N 87741066, Ref. 1; Prior To P.I.N. N8F204751

1шт.

15a

87736954

BRACKET

Brake Accumulator; For Use With 3.5L Brake Accumulators P/N 87728740, Ref. 1A; P.I.N. N8F204751 And After

1шт.

16

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

3шт.

17

832-10412

NUT,M12 x 1.75, Cl 8

3шт.

18

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

19

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

20

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.
