Запчасти Case 621E (07-03A) - HYDRAULICS - BRAKE, MAIN - AXLE (07) - BRAKES

REF

INSTRUCTION

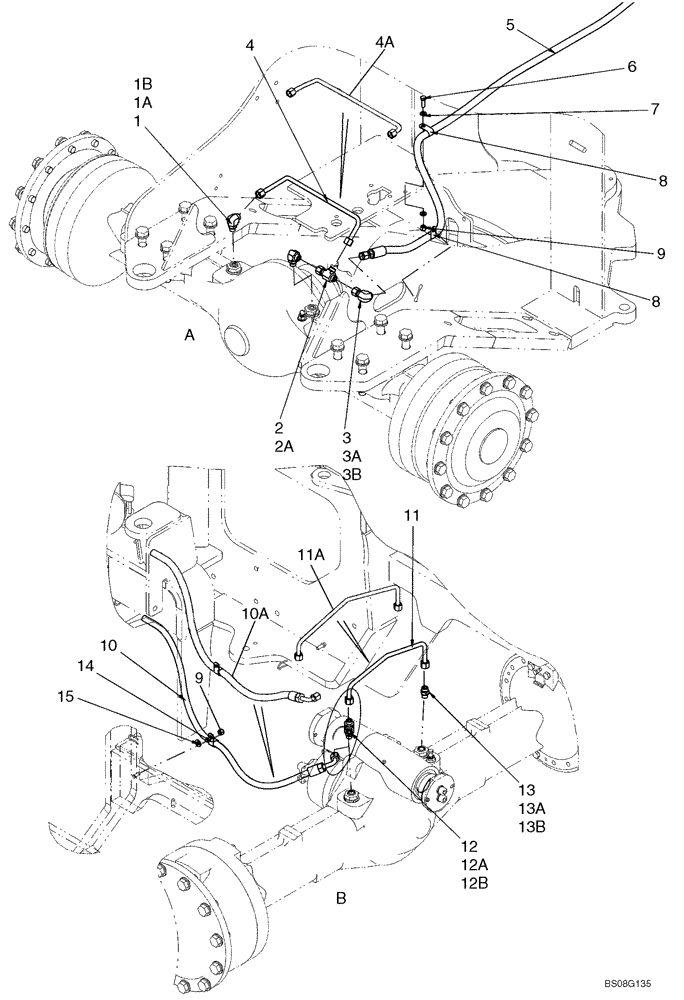

ILLUSTRATION A - FRONT AXLE, ILLUSTRATION B - REAR AXLE

1шт.

1

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. Refs. 1A, 1B

2шт.

1a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

1b

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

2

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl. Refs. 2A

1шт.

2a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

2шт.

3

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl. Refs. 3A, 3B

1шт.

3a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

3b

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

4

386735A1

TUBE

Front Axle Brake; Used With Front Axle 87358580, Serial Range: -N8F203848

1шт.

4a

87552628

TUBE,10.2 mm ID x 12.7 mm OD x 480, 50 mm L

Front Axle Brake; Used With Front Axle 87550687, Start Serial: N8F203848

1шт.

5

87689318

HOSE ASSY.

Front Axle Brake; 3168mm ( 124 - 3/4 in )

1шт.

6

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

8

515-24222

CLAMP,7/8", Insul, 7/16" Bolt

2шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

10

87553873

HOSE

Rear Axle Brake; 1081 mm (42 - 9/16 in); Used With Rear Axle 87358583, Serial Range: -N8F203848

1шт.

10a

87587480

HOSE ASSY.

Rear Axle Brake; 910 mm (35 - 13/16 in); Used With Rear Axle 87550688, Start Serial: N8F203848

1шт.

11

386823A1

TUBE

Rear Axle Brake; Used With Rear Axle 87358583, Serial Range: -N8F203848

1шт.

11a

87552630

TUBE,10.2 mm ID x 12.7 mm OD x 480, 120 mm L

Rear Axle Brake; Used With Rear Axle 87550688, Start Serial: N8F203848

1шт.

12

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. Refs. 12A, 12B

1шт.

12a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

2шт.

12b

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

13

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. Refs. 13A, 13B

1шт.

13a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

13b

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

14

515-24238

CLAMP,15/16", Insul, 7/16" Bolt

1шт.

15

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.
