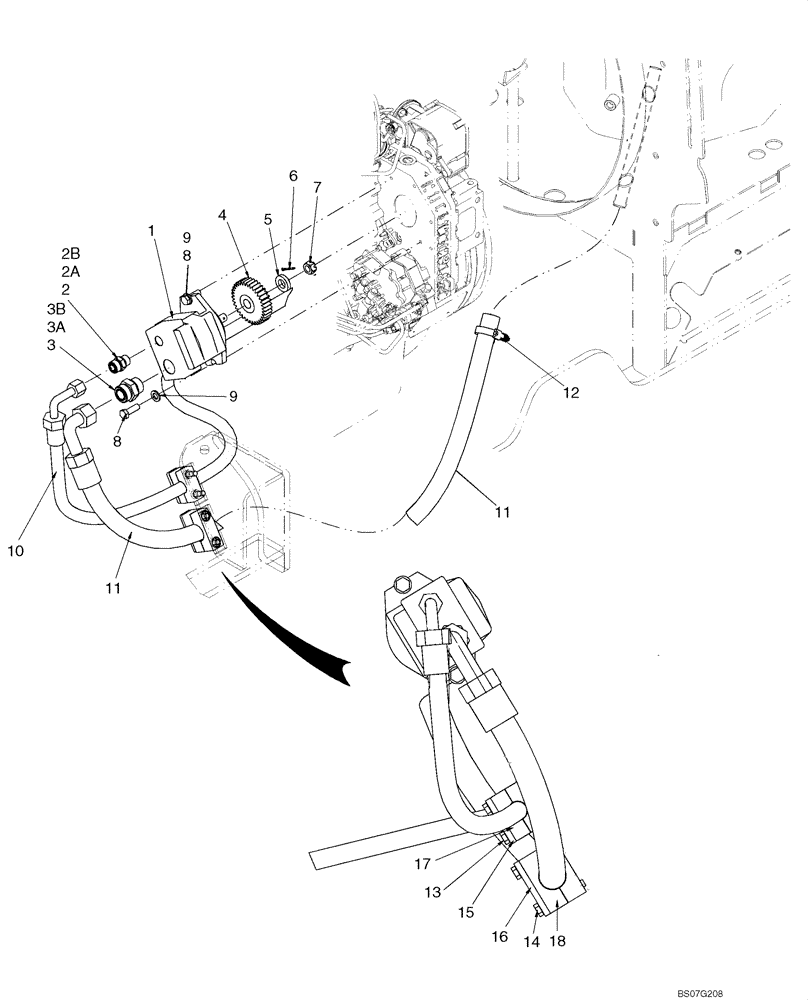

Запчасти Case 621E (07-03) - HYDRAULICS - BRAKE, MAIN - PUMP (07) - BRAKES

1

87342166

HYDRAULIC PUMP,23.6 CC

Brake; See Figure 07-04

1шт.

87342166R

REMAN-HYD PUMP

621E TIER 3 (NA) (8/07-)

1шт.

87342166C

CORE-INJECTION PUMP

Return Number

1шт.

2

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 2A, 2B

1шт.

2a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

2b

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

3

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. 3A, 3B

1шт.

3a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

3b

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

4

87389871

GEAR

Accessory Drive

1шт.

5

87373112

WASHER,20mm ID x 36mm OD x 7.5mm Thk

Gear Mounting

1шт.

6

733-3232

COTTER PIN,M3.2 x 32

1шт.

7

425-1310

SLOTTED NUT,5/8"-18, G5

1шт.

8

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

9

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

10

87377350

HOSE ASSY.

Brake Pump Pressure; 2491 mm ( 98-1/16 in )

1шт.

11

84172203

HYDRAULIC HOSE

Brake Pump Suction; 1043mm ( 41 in )

1шт.

11

87377337

HOSE ASSY.

Brake Pump Suction (Used With Limited Slip Axle Only)

1шт.

12

353036A1

HOSE CLAMP,32mm - 54mm

Constant Torque

1шт.

13

827-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 10.9

2шт.

14

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

2шт.

15

367658A1

PLATE

Clamp Cover

1шт.

16

8500858

PLATE

Clamp Cover

1шт.

17

8606002

CLAMP

Hose Mounting

1шт.

18

8500621

BLOCK

Hose Mounting

1шт.
