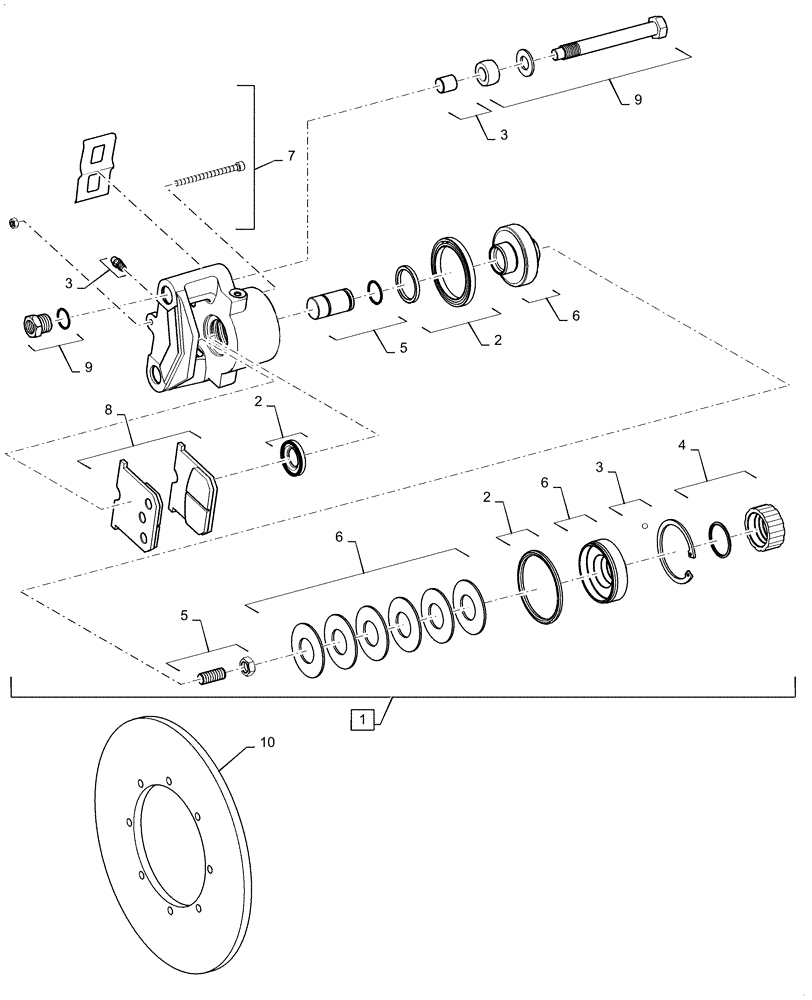

Запчасти Case 621E (07-01[01]) - BRAKE PARKING AFTER SERIAL NUMBER N9F206959 (07) - BRAKES

1

84252195

PARKING BRAKE

Parking Break Caliper Assy Inc 2-9, Start Serial: n8f203848

1шт.

2

84252197

SEAL

Seal Kit

1шт.

3

84252199

SNAP RING

Snap Ring And Bleeder

1шт.

4

84252201

CAP

End Cap

1шт.

5

84252202

PIN

Pressure Pin And O-Ring

1шт.

6

84252205

PISTON

Piston And Springs

1шт.

7

84252207

KIT

Plate And Spacer

1шт.

8

84252208

BRAKE PAD

Brake Pads

1шт.

9

84252209

SET SCREW

Caliper Mounting Bolts

1шт.

10

8603328

BRAKE DISC

1шт.
