(02-04) - COOLER, CHARGE AIR - HOSES AND TUBES

Запчасти Case 621E (02-04) - COOLER, CHARGE AIR - HOSES AND TUBES (02) - ENGINE

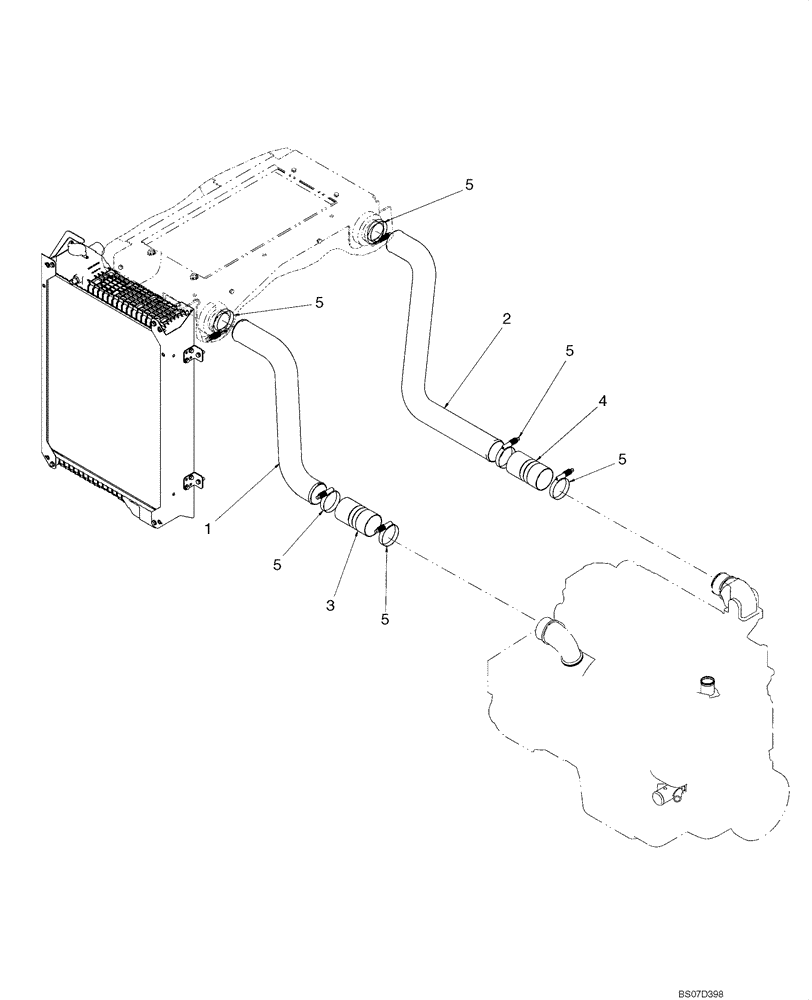

Схема запчастей Case 621E - (02-04) - COOLER, CHARGE AIR - HOSES AND TUBES (02) - ENGINE
5
4
5
5
5
5
2
1
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87552496

TUBE,3" OD

Charge Air - Turbo

1шт.

2

87644742

AIR INTAKE TUBE

Charge Air - Intake

1шт.

3

87340284

INTAKE AIR HOSE,76.20mm ID x 129mm L

Charge Air

1шт.

4

87340015

INTAKE AIR HOSE,76.20mm ID x 140mm L

1шт.

5

L115549

CLAMP,69.85mm - 92.08mm

6шт.
