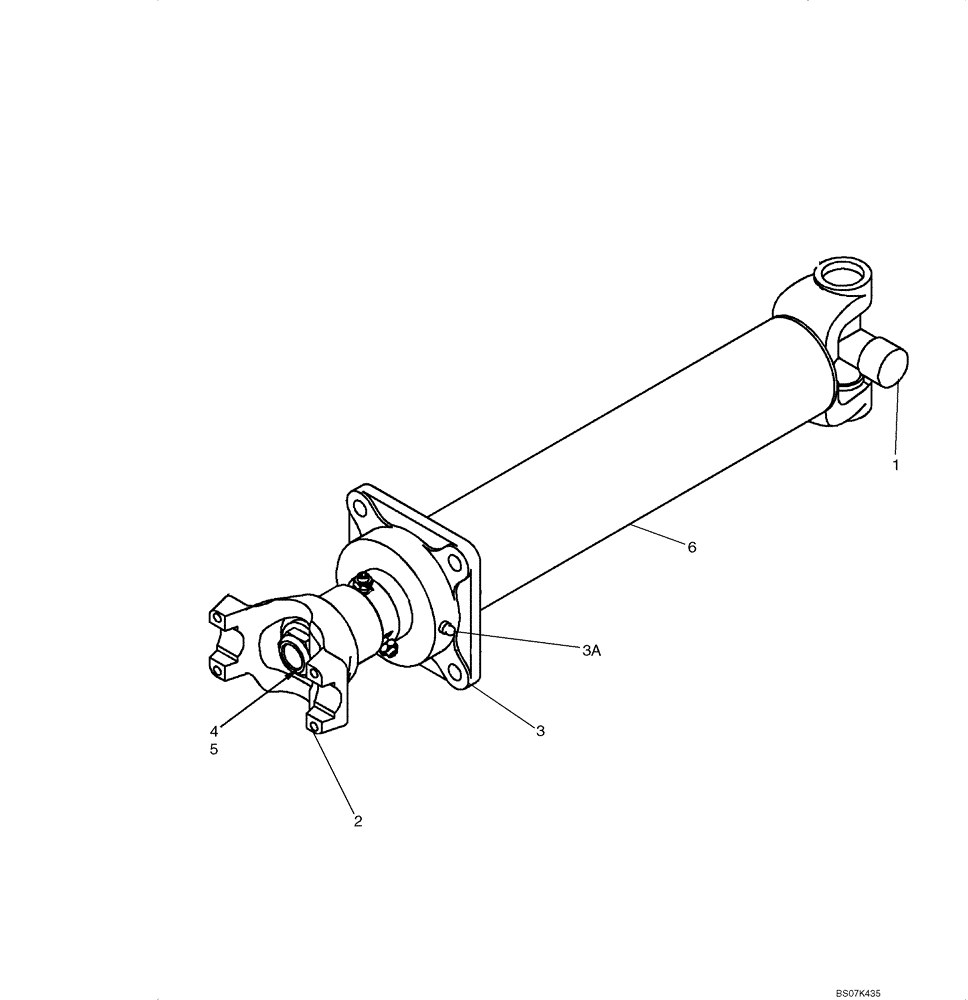

Запчасти Case 621E (06-63) - DRIVE SHAFT, FRONT (06) - POWER TRAIN

87553865

DRIVE SHAFT

Front; Incl. Refs. 1 - 6

1шт.

1

8604675

BEARING ASSY

Incl. U-Joint, Grease Fitting, and (4) Snap Rings

1шт.

2

87756354

YOKE

Replaces 8604674 Yoke Used On Some Models

1шт.

L106070

FLANGED BEARING

Carrier, Incl. Refs. 3 - 3E

1шт.

3

NSS

NOT SOLD SEPARAT

Housing

1шт.

3a

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

3b

L33788

AXLE PIN

1/4 in dia, Not Illustrated

1шт.

L33787

KIT

Bearing And Collar, Incl. Refs. 3C - 3E

1шт.

3c

NSS

NOT SOLD SEPARAT

Bearing, Support, Not Illustrated

1шт.

3d

L33789

COLLAR

Not Illustrated

1шт.

3e

61-32516

HEX SOC SCREW,1/4"-20 x 1"

Not Illustrated

1шт.

4

8604270

LOCK NUT

1шт.

5

86637954

WASHER,1.06" ID x 2" OD x 0.21" Thk

1шт.

6

NSS

NOT SOLD SEPARAT

TUBE

1шт.
