(06-61) - AXLE, REAR - HUB, PLANETARY - P.I.N. N8F203848 AND AFTER

Запчасти Case 621E (06-61) - AXLE, REAR - HUB, PLANETARY - P.I.N. N8F203848 AND AFTER (06) - POWER TRAIN

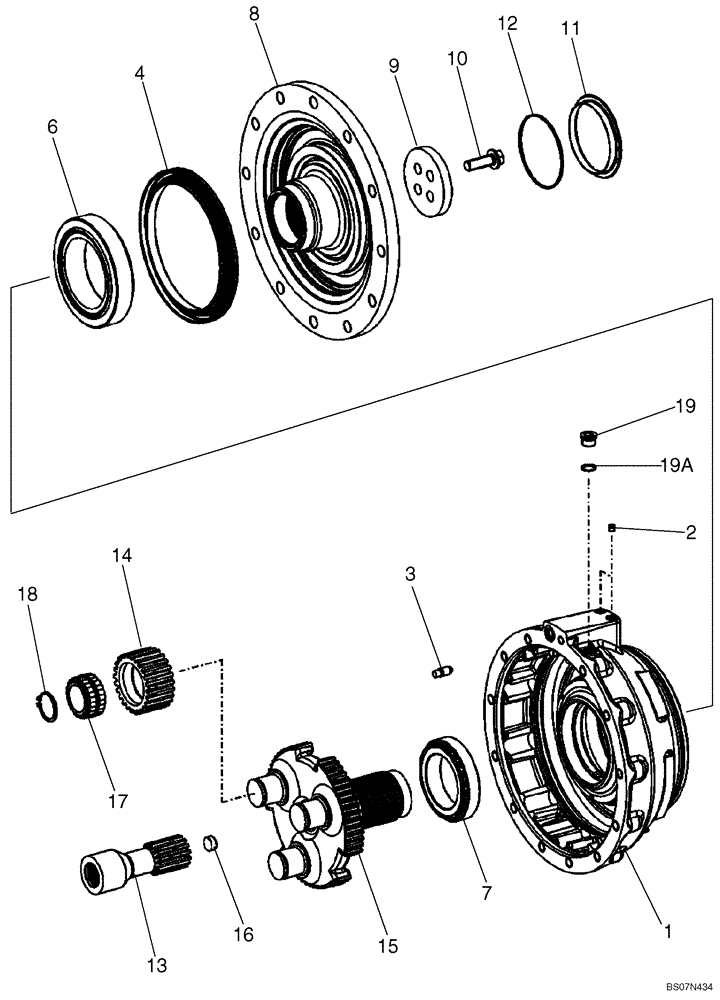

Схема запчастей Case 621E - (06-61) - AXLE, REAR - HUB, PLANETARY - P.I.N. N8F203848 AND AFTER (06) - POWER TRAIN
9
15
8
17
7
11
19
1
6
14
18
12
3
4
10
2
13
16
19a
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87550688

AXLE

REAR, Limited Slip; Incl. Figures 06-57 - 06-61; Incl. Refs. 1 - 19A; P.I.N. N8F203848 And After

1шт.

84392481R

REMAN-AXLE DIF w/LTD

621E WHEEL LOADER TIER 3 (NA), HUB, PLANETARY, REAR, Limited Slip, P.I.N. N8F203848 AND AFTER (8/07-)

1шт.

84392481C

CORE-AXLE DIFF w/LTD

Return Number

1шт.

87745600

DRIVE

Axle, Incl. Refs. 1 - 19A, Also Incl. Parts on Fig. 06-60

2шт.

1

87743207

HOUSING

Brake

1шт.

2

8603673

PLUG

2шт.

3

76088742

VALVE

Vent

1шт.

4

84150634

SEAL

SEALRING

1шт.

6

8603563

TAPERED BEARING

1шт.

7

87743209

TAPERED BEARING

1шт.

8

87743210

SHAFT

Output

1шт.

9

87743211

COVER

1шт.

10

87743212

LOCK BOLT

Locking

4шт.

11

87743213

COVER

1шт.

12

8603527

O-RING

1шт.

13

87743214

SHAFT

Sun Gear

1шт.

14

87358699

GEAR

Planet

3шт.

15

87743215

PLANET CARRIER

Planet

1шт.

16

8603571

PLUG

1шт.

17

84219769

BEARING, ROLLER, CYL

3шт.

18

87358698

SNAP RING

3шт.

19

8603575

PLUG

M24 x 1.5, Incl. Ref. 19A

1шт.

19a

8603208

O-RING,2mm Thk x 21mm ID

1шт.
