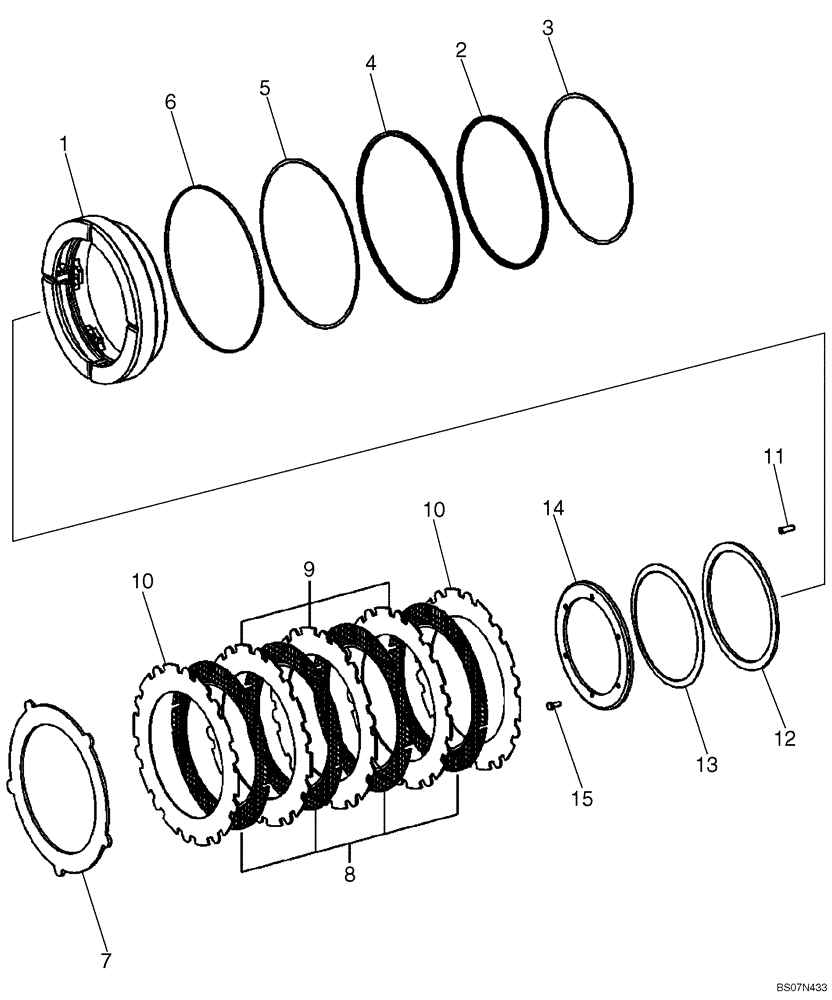

Запчасти Case 621E (06-60) - AXLE, REAR - BRAKE - P.I.N. N8F203848 AND AFTER (06) - POWER TRAIN

87550688

AXLE

REAR, Limited Slip; Incl. Figures 06-57 - 06-61; Incl. Refs. 1 - 15; P.I.N. N8F203848 And After

1шт.

84392481R

REMAN-AXLE DIF w/LTD

621E WHEEL LOADER TIER 3 (NA), BRAKE, REAR, Limited Slip, P.I.N. N8F203848 AND AFTER (8/07-)

1шт.

84392481C

CORE-AXLE DIFF w/LTD

Return Number

1шт.

87745600

DRIVE

Axle, Incl. Refs. 1 - 15, Also Incl. Parts on Fig. 06-61

2шт.

1

87743216

PISTON

1шт.

2

8605314

SEAL,298mm ID x 310mm OD x 8mm Thk

1шт.

3

8603577

RING

1шт.

4

8605315

SEAL

1шт.

5

8603579

RING

1шт.

6

8603580

SNAP RING

1шт.

7

87743217

SHIM

End

1шт.

8

87341835

BRAKE DISC

Inner, NSS, Please Order P/N 87365252 Kit, Incl 8 - 10, Parts For One Complete Axle (Two Wheel Ends)

4шт.

9

8603582

BRAKE PLATE

Outer, NSS, Please Order P/N 87365252 Kit, Incl 8 - 10, Parts For One Complete Axle (Two Wheel Ends)

3шт.

10

87441328

PLATE,2mm Thk

NSS, Please Order P/N 87365252 Kit, Incl 8 - 10, Parts For One Complete Axle (Two Wheel Ends)

2шт.

11

87743218

PIN

Slot

6шт.

12

87743219

WASHER

1шт.

13

87743220

WASHER

Cup

6шт.

14

87743746

COVER

1шт.

15

87743747

SCREW,Hex

Hex, M8 x 20

6шт.
