(06-59) - AXLE, REAR - DIFFERENTIAL, LIMITED SLIP - P.I.N. N8F203848 TO NBF210932

Запчасти Case 621E (06-59) - AXLE, REAR - DIFFERENTIAL, LIMITED SLIP - P.I.N. N8F203848 TO NBF210932 (06) - POWER TRAIN

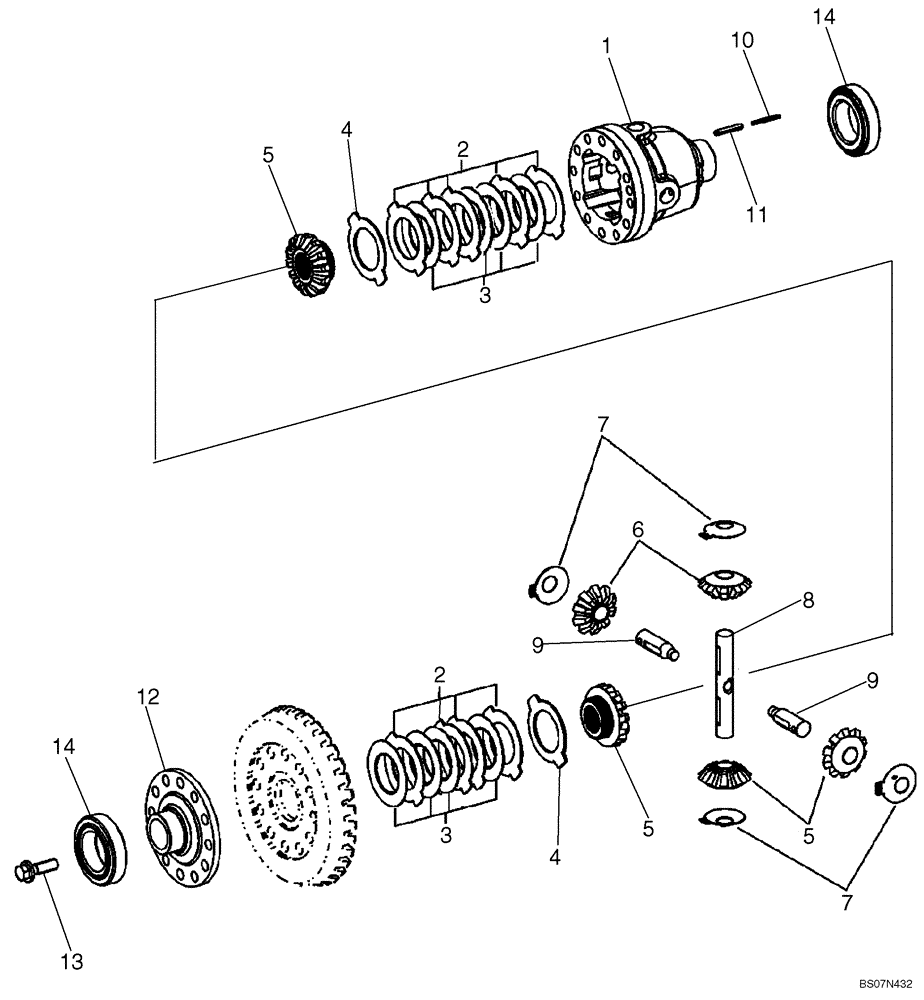

Схема запчастей Case 621E - (06-59) - AXLE, REAR - DIFFERENTIAL, LIMITED SLIP - P.I.N. N8F203848 TO NBF210932 (06) - POWER TRAIN
9
2
13
7
14
3
12
3
4
11
2
4
8
7
14
5
9
6
1
5
5
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87550688

AXLE

REAR, Limited Slip; Incl. Refs. 1 - 14; Incl. Figures 06-57 - 06-61; P.I.N. N8F203848 to NBF210932

1шт.

84392481R

REMAN-AXLE DIF w/LTD

621E WHEEL LOADER TIER 3 (NA), DIFFERENTIAL, REAR, Limited Slip, P.I.N. N8F203848 to NBF210932

1шт.

84392481C

CORE-AXLE DIFF w/LTD

Return Number

1шт.

84392481

AXLE

Incl. Refs. 1 - 14

1шт.

1

84496901

HOUSING

1шт.

2

87742939

CLUTCH PLATE

CLUTCH DISK Outer 1.8 mm Thick

1шт.

2

87742940

CLUTCH PLATE

CLUTCH DISK Outer 1.9 mm Thick

1шт.

2

87742941

DISC,Axle, Friction

CLUTCH DISK Outer 2.0 mm Thick

1шт.

3

87742942

CLUTCH DISC

CLUTCH DISK Inner

8шт.

4

87742943

THRUST WASHER

Thrust

2шт.

5

84496911

GEAR

Axle

2шт.

6

84496902

GEAR

Differential

4шт.

7

84496904

WASHER

Thrust

4шт.

8

84496905

SHAFT

Differential

1шт.

9

84496906

SHAFT

Differential Half

2шт.

10

84024216

LOCK PIN,5mm OD x 50mm L, Slotted

2шт.

11

87742960

PIN

Slot, 5 x 80 mm

2шт.

12

87742961

COVER

Housing

1шт.

13

184716A1

SCREW

Locking

12шт.

14

8603222

ROLLER BEARING,65mm ID x 140mm OD x 36mm W

2шт.
