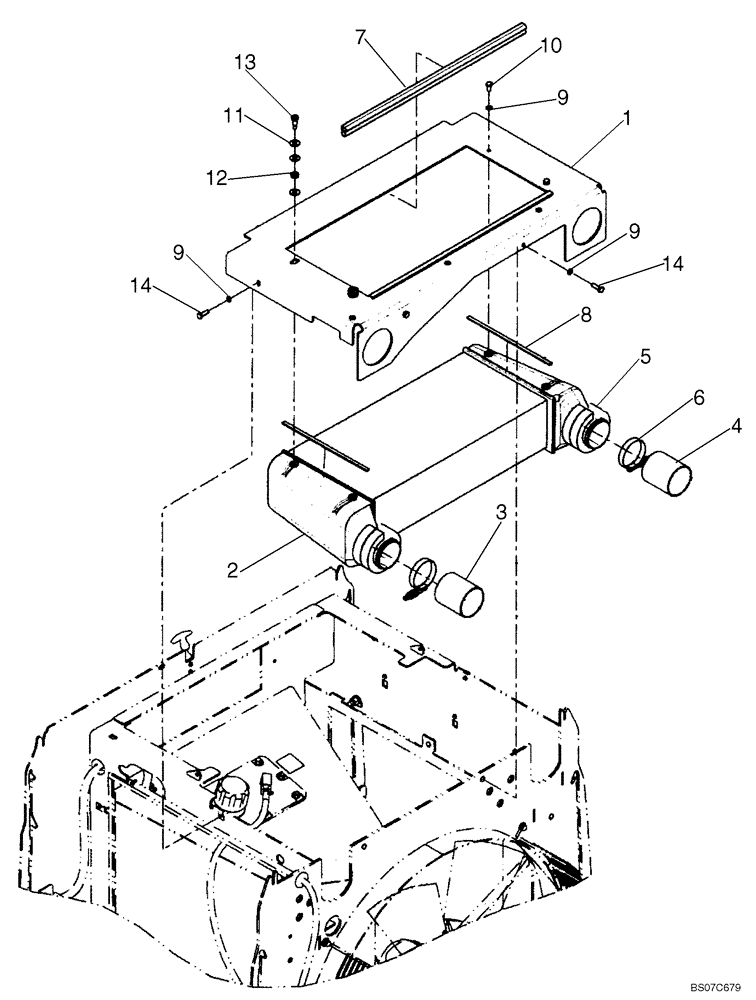

Запчасти Case 621E (02-03) - COOLER, CHARGE AIR (02) - ENGINE

1

87381953

PLATE ASSY.

Charge Air

1шт.

2

347613A1

AFTERCOOLER

Charge Air

1шт.

3

87572375

HOSE,76.2mm ID x 89mm L

HOSE, Air Intake

1шт.

4

87572378

HOSE

HOSE, Air Intake

1шт.

5

8500167

SEAL

2шт.

6

L115549

CLAMP,69.85mm - 92.08mm

2шт.

7

8500144

SEAL

2шт.

8

8500143

FOAM INSULATION,9mm W x 290mm L x 3mm Thk

Foam

2шт.

9

892-11008

LOCK WASHER,8mm ID

6шт.

10

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

11

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

12

386040R1

SPRING

2шт.

13

561-703

HEX SOC SCREW,M8 x 32.4, 10 x 16mm shldr, Cl 12.9

2шт.

14

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.
