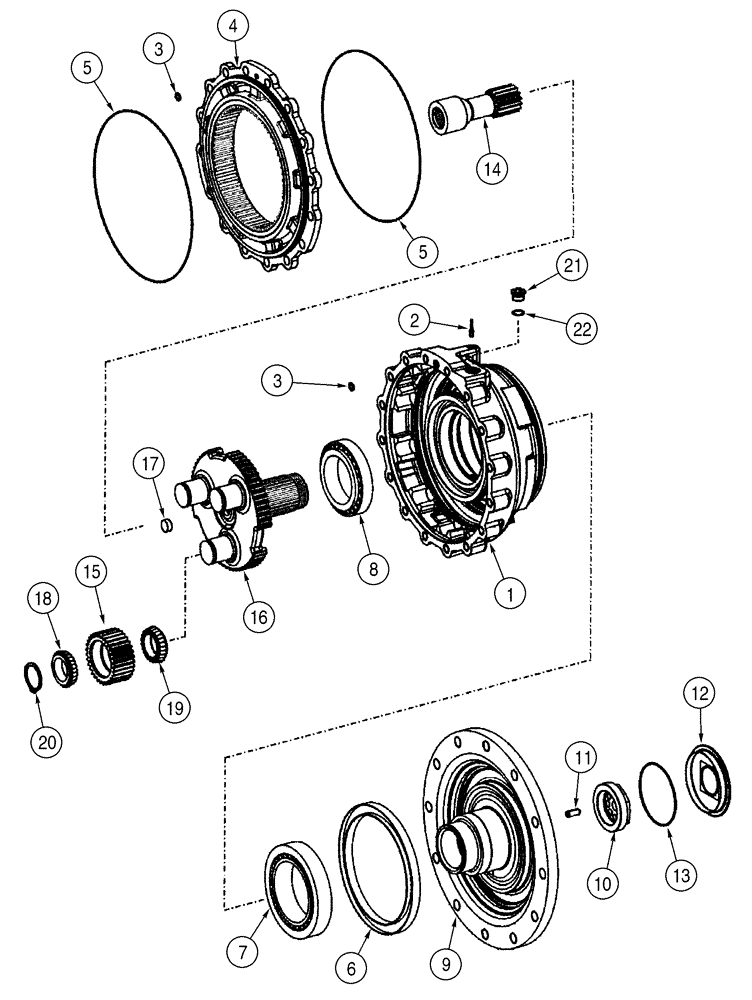

Запчасти Case 621E (06-56) - AXLE, REAR - HUB, PLANETARY - PRIOR TO P.I.N. N8F203848 (06) - POWER TRAIN

87358583

REAR AXLE

Limited Slip; Incl. Figures 06-52 - 06-56; Incl. Refs. 1 - 22; Prior To P.I.N. N8F203848

1шт.

87358583R

REMAN-AXLE

621E Tier 3, Prior To P.I.N. N8F203848

1шт.

87358583R

REMAN-AXLE

Return Number

1шт.

87358681

END ASSY.

Incl. Refs. 1 - 22; Incl. Figure 06-55

1шт.

87363347

REMAN-AXLE

END ASSY. Remanufactured 87358681; Parts In Catalog Do Not Apply to Remanufactured Assy

2шт.

87363333

CORE-AXLE

END ASSY. Return Number, Core 87358681, Use This Part Number To Return Core For Credit When Using A Remanufactured Assy

2шт.

1

87437916

HOUSING

1шт.

2

8603673

PLUG

1шт.

3

8603559

O-RING,2.5mm Thk x 12.5mm ID, 75 Duro

2шт.

4

8603560

RING GEAR,Planetary Ring

1шт.

5

8603674

O-RING,2.5mm Thk x 362mm ID, 70 Duro

360 x 2.5

2шт.

6

84150634

SEAL

SEALRING Replaces 8603562

1шт.

7

8603691

TAPERED BEARING

Outer

1шт.

8

8603692

TAPERED BEARING

Inner

1шт.

9

8603675

FLANGE

M22 x 1.5; Output

1шт.

10

8603565

NUT

1шт.

11

8603566

COTTER PIN

1шт.

12

8603567

COVER

1шт.

13

8603527

O-RING

1шт.

14

8603568

GEAR

1шт.

15

87358699

GEAR

Planetary

3шт.

16

87358700

CARRIER

1шт.

17

8603571

PLUG

1шт.

18

8603572

ROLLER BEARING

Outer

3шт.

19

84219769

BEARING, ROLLER, CYL

3шт.

20

87358698

SNAP RING

4шт.

21

8603575

PLUG

Incl. Ref. 22

1шт.

22

8603208

O-RING,2mm Thk x 21mm ID

1шт.
