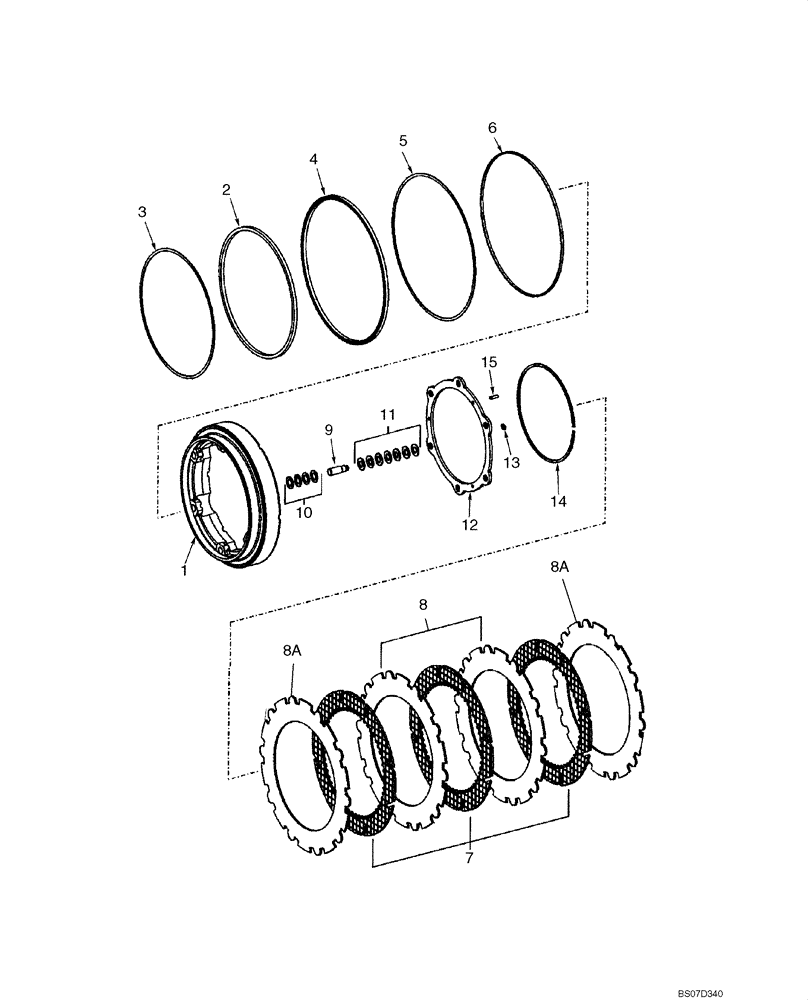

Запчасти Case 621E (06-55) - AXLE, REAR - BRAKE - PRIOR TO P.I.N. N8F203848 (06) - POWER TRAIN

87358583

REAR AXLE

Limited Slip; Incl. Figures 06-52 - 06-56; Incl. Refs. 1 - 15; Prior To P.I.N. N8F203848

1шт.

87358583R

REMAN-AXLE

621E Tier 3, Prior To P.I.N. N8F203848

1шт.

87358583C

CORE-AXLE

Return Number

1шт.

87358681

END ASSY.

Incl. Refs. 1 - 15; Incl. Figure 06-56

2шт.

87363347

REMAN-AXLE

END ASSY. Remanufactured 87358681; Parts In Catalog Do Not Apply to Remanufactured Assy

2шт.

87363333

CORE-AXLE

END ASSY. Return Number, Core 87358681, Use This Part Number To Return Core For Credit When Using A Remanufactured Assy

2шт.

1

8603166

PISTON

1шт.

2

8605314

SEAL,298mm ID x 310mm OD x 8mm Thk

1шт.

3

8603577

RING

1шт.

4

8605315

SEAL

1шт.

5

8603579

RING

1шт.

6

8603580

SNAP RING

1шт.

7

87341835

BRAKE DISC

NSS, Please Order P/N 87365251 Kit, Incl 7 - 8A, Parts For One Complete Axle (Two Wheel Ends)

3шт.

87365251

REPAIR KIT

Brake Pack Replacement, Incl. Parts For One Complete Axle (Two Wheel Ends); Incl. (2X) Refs. 7 - 8A

1шт.

8

8603582

BRAKE PLATE

NSS, Please Order P/N 87365251 Kit, Incl 7 - 8A, Parts For One Complete Axle (Two Wheel Ends)

2шт.

8a

87441328

PLATE,2mm Thk

NSS, Please Order P/N 87365251 Kit, Incl 7 - 8A, Parts For One Complete Axle (Two Wheel Ends)

2шт.

9

8603163

PIN

6шт.

10

8603583

SEAL

24шт.

11

8603584

BELLEVILLE WASHER

42шт.

12

8603162

SHIM

1шт.

13

8603788

SNAP RING

6шт.

14

8603585

SNAP RING

1шт.

15

8603796

ROLL PIN,6mm OD x 20mm L

6 x 20 mm

6шт.
