(06-54) - AXLE, REAR - DIFFERENTIAL - PRIOR TO P.I.N. N8F203848

Запчасти Case 621E (06-54) - AXLE, REAR - DIFFERENTIAL - PRIOR TO P.I.N. N8F203848 (06) - POWER TRAIN

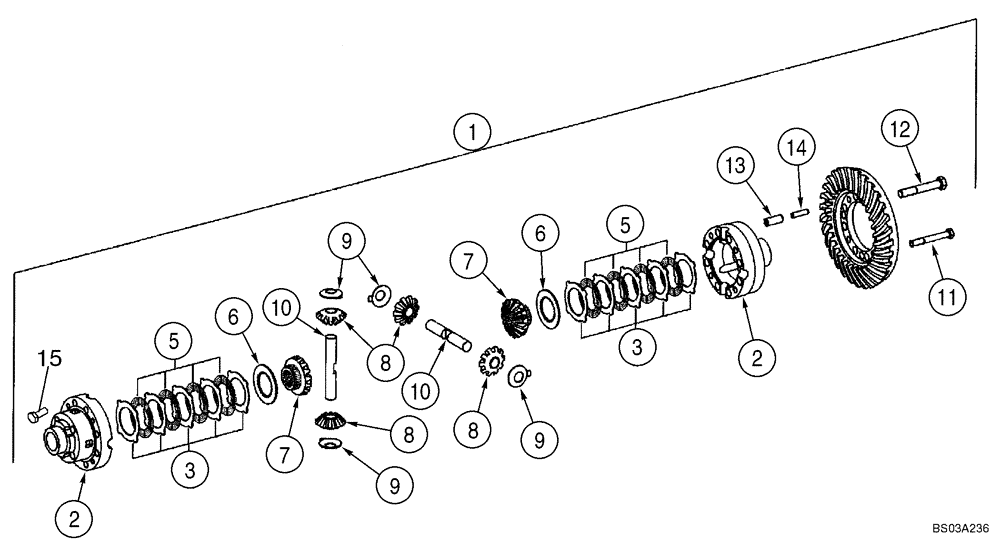

Схема запчастей Case 621E - (06-54) - AXLE, REAR - DIFFERENTIAL - PRIOR TO P.I.N. N8F203848 (06) - POWER TRAIN
10
7
3
11
2
6
13
15
3
9
5
5
9
2
12
9
1
7
8
8
6
14
8
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87358583

REAR AXLE

Limited Slip; Incl. Refs. 1 - 20; Incl. Figures 06-52 - 06-56; Prior To P.I.N. N8F203848

1шт.

87358583R

REMAN-AXLE

621E Tier 3, Prior To P.I.N. N8F203848

1шт.

87358583C

CORE-AXLE

Return Number

1шт.

1

8605274

DIFF CARRIER & GEARS

Incl. Refs. 2 - 20

1шт.

2

8605359

HOUSING

If Used

1шт.

3

8603713

PLATE

1.4 mm; Separator; If Used

10шт.

5

8603714

PLATE

Friction

8шт.

6

8603715

PRESSURE RING

3.0 mm; Pressure

2шт.

7

8603716

GEAR

No Longer Available, Order 84144323 Gear and 84144326 Gear, Refs. 7A, 8A

2шт.

7a

84144323

GEAR

2шт.

8

8603717

GEAR

No Longer Available, Order 84144323 Gear and 84144326 Gear, Refs. 7A, 8A

4шт.

9

8603718

THRUST WASHER

4шт.

10

8603719

SHAFT

2шт.

8a

84144326

GEAR

4шт.

11

8603720

BOLT

M12 x 1.5 x 95

4шт.

12

8603721

BOLT,Hex, M16 x 1.5 x 40mm, Full Thd

M16 x 1.5 x 100

8шт.

13

8603722

PIN

16 x 40

4шт.

14

8603723

PIN

10 x 40

4шт.

15

8603724

SCREW

4шт.

16

8603271

SEAL

Front Bevel Gear; Not Illustrated

1шт.

17

8605631

CLUTCH PLATE

If Used; Not Illustrated

1шт.

18

8605632

CLUTCH PLATE

If Used; Not Illustrated

1шт.

19

8605633

CLUTCH PLATE

If Used; Not Illustrated

1шт.

20

8605634

WASHER

If Used; Not Illustrated

8шт.
