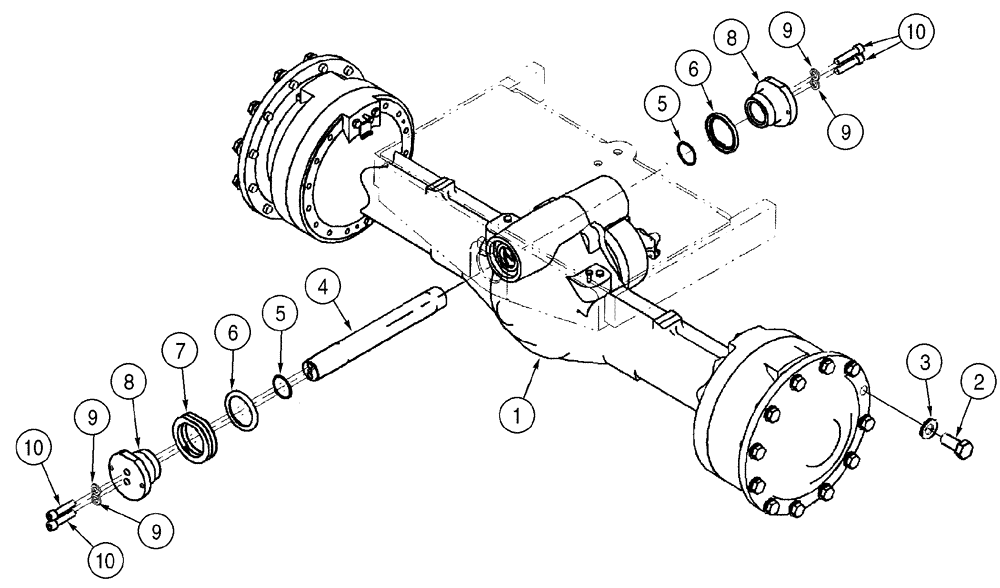

Запчасти Case 621E (06-51) - AXLE, REAR - MOUNTING (06) - POWER TRAIN

1

87358583

REAR AXLE

Limited Slip; Incl. Figures 06-52 - 06-56; Prior To P.I.N. N8F203848

1шт.

1

87358583R

REMAN-AXLE

621E Tier 3, Prior To P.I.N. N8F203848

1шт.

1

87358583C

CORE-AXLE

Return Number

1шт.

1

87550688

AXLE

REAR, Limited Slip; Incl. Figures 06-57 - 06-61; P.I.N. N8F203848 And After

1шт.

1

84392481R

REMAN-AXLE DIF w/LTD

621E WHEEL LOADER TIER 3 (NA), MOUNTING, REAR, Limited Slip, P.I.N. N8F203848 And After (8/07-)

1шт.

1

84392481C

CORE-AXLE DIFF w/LTD

Return Number

1шт.

2

514-1315

BOLT,Hex, M22 x 1.5 x 50mm, Cl 10.9

24шт.

3

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

24шт.

4

87695939

PIN,55.95mm OD x 463mm L

Pivot; Replaces 87450043

1шт.

5

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

2шт.

6

87715378

OIL SEAL,82.55mm ID x 108.1mm OD x 19.43mm Thk

Replaces A57658

2шт.

7

368140A1

SHIM,93.5mm ID x 128mm OD x 0.5mm Thk

1шт.

7

368141A1

SHIM,93.5mm ID x 128mm OD x 1mm Thk

1шт.

7

368142A1

SHIM,93.5mm ID x 128mm OD x 1.5mm Thk

1шт.

8

87731988

PIVOT

Replaces 86991231

2шт.

9

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

10

863-16070

HEX SOC SCREW,M16 x 70mm, Cl 12.9

4шт.

11

8603201

BREATHER

Valve; Not Illustrated

2шт.
