(06-50) - AXLE, FRONT - HUB, PLANETARY - P.I.N. N8F203848 AND AFTER

Запчасти Case 621E (06-50) - AXLE, FRONT - HUB, PLANETARY - P.I.N. N8F203848 AND AFTER (06) - POWER TRAIN

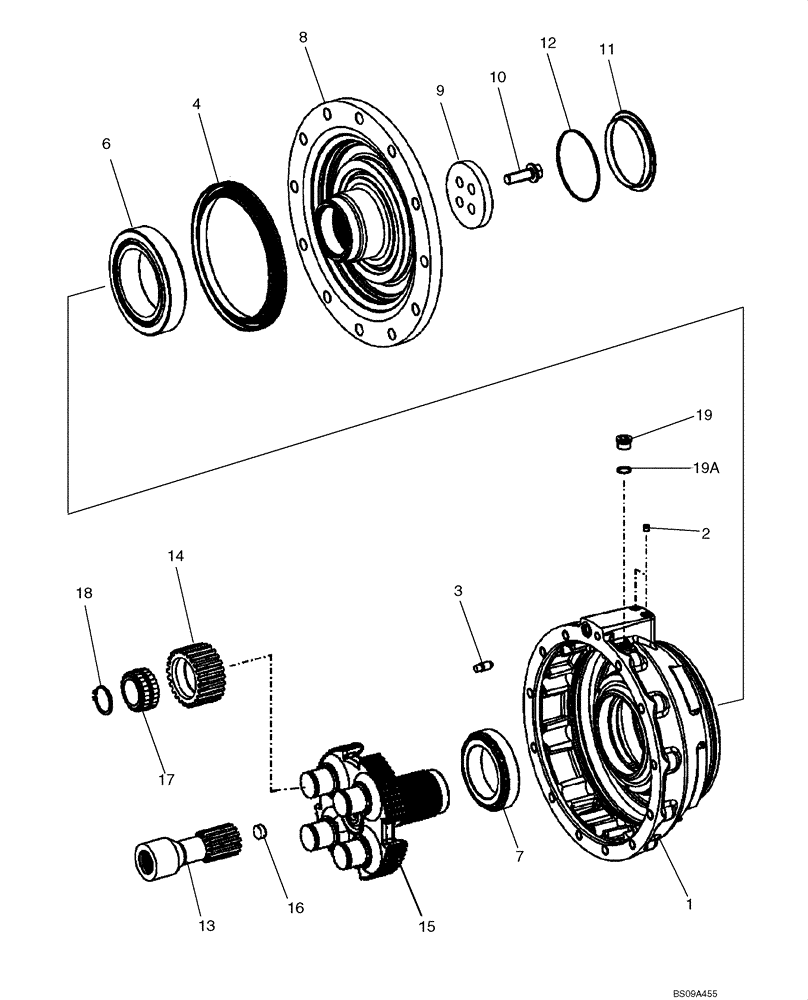

Схема запчастей Case 621E - (06-50) - AXLE, FRONT - HUB, PLANETARY - P.I.N. N8F203848 AND AFTER (06) - POWER TRAIN
16
7
14
17
19
6
8
4
19a
10
12
1
9
15
3
11
13
2
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87550687

AXLE

FRONT, Limited Slip; See Figures 06-46 - 06-50; Incl. Refs. 1 - 19A; P.I.N. N8F203848 And After

1шт.

84392478R

REMAN-FRONT AXLE

FRONT, Limited Slip; See Figures 06-46 - 06-50; Incl. Refs. 1 - 19A; P.I.N. N8F203848 And After

1шт.

84392478C

CORE-FRONT AXLE 4WD

Return Number

1шт.

87485968

END

Incl. Refs. 1 - 19A; Incl. Figure 06-49

2шт.

1

87743207

HOUSING

Brake

1шт.

2

8603673

PLUG

2шт.

3

76088742

VALVE

Vent

1шт.

3a

87757161

DUST CAP

Vent Valve; Not Illustrated

1шт.

4

84150634

SEAL

SEALRING

1шт.

6

8603563

TAPERED BEARING

1шт.

7

87743209

TAPERED BEARING

1шт.

8

87743210

SHAFT

Output

1шт.

9

87743211

COVER

1шт.

10

87743212

LOCK BOLT

Locking

4шт.

11

87743213

COVER

1шт.

12

8603527

O-RING

1шт.

13

87743214

SHAFT

Sun Gear

1шт.

14

87358699

GEAR

Planet

4шт.

15

84162393

CARRIER,Planetary Gear

CARRIER, Planet; Replaces 87485969

1шт.

16

8603571

PLUG

1шт.

17

84219769

BEARING, ROLLER, CYL

3шт.

18

87358698

SNAP RING

3шт.

19

8603575

PLUG

M24 x 1.5, Incl. Ref. 19A

1шт.

19a

8603208

O-RING,2mm Thk x 21mm ID

1шт.
