(06-48A) - AXLE, FRONT - DIFFERENTIAL, LIMITED SLIP - NBF210933 AND AFTER

Запчасти Case 621E (06-48A) - AXLE, FRONT - DIFFERENTIAL, LIMITED SLIP - NBF210933 AND AFTER (06) - POWER TRAIN

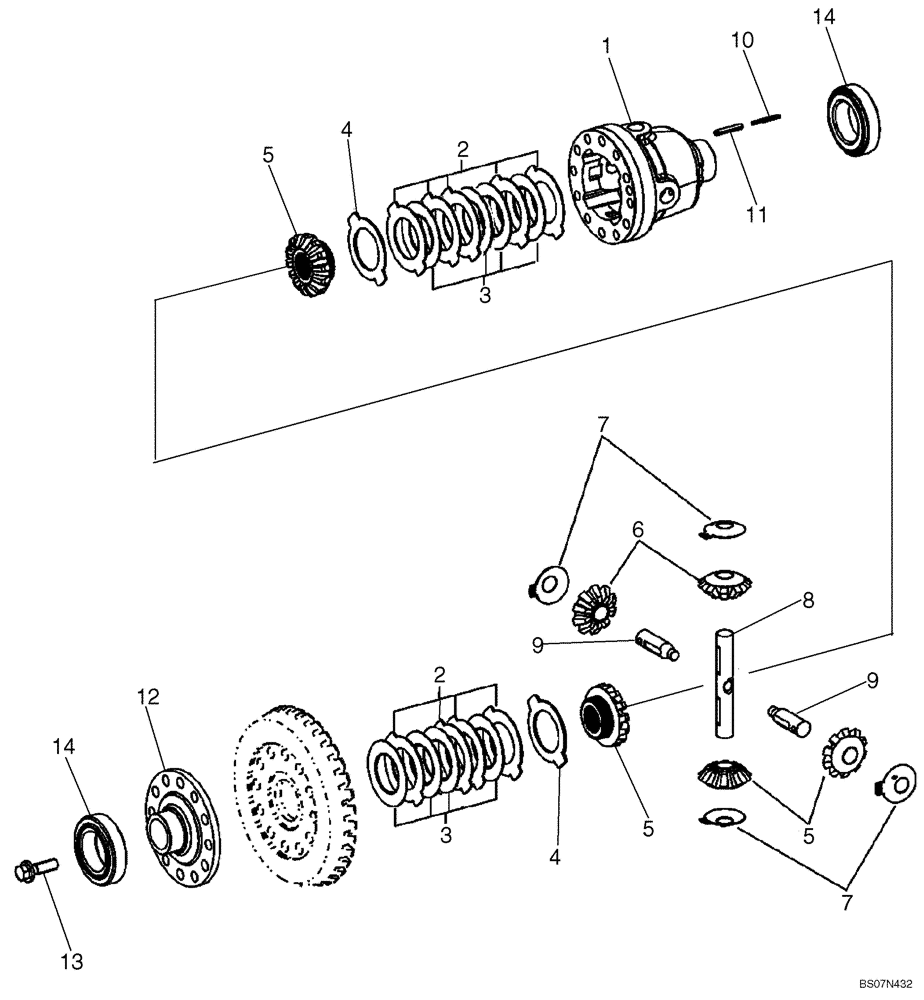

Схема запчастей Case 621E - (06-48A) - AXLE, FRONT - DIFFERENTIAL, LIMITED SLIP - NBF210933 AND AFTER (06) - POWER TRAIN
4
6
2
9
5
14
7
1
9
7
11
5
12
3
10
2
13
5
4
3
14
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

84392478

AXLE

FRONT, Limited Slip; Incl. Refs. 1 - 14; Incl. Figures 06-46 - 06-50; P.I.N. NBF210933 and After

1шт.

84392478R

REMAN-FRONT AXLE

FRONT, Limited Slip; Incl. Refs. 1 - 14; Incl. Figures 06-46 - 06-50; P.I.N. NBF210933 and After

1шт.

84392478C

CORE-FRONT AXLE 4WD

Return Number

1шт.

84496825

DIFFERENTIAL ASSY

Incl. Refs. 1 - 14

1шт.

1

84496901

HOUSING

1шт.

2

87742939

CLUTCH PLATE

CLUTCH DISK Outer, 1.8 mm Thick

1шт.

2

87742940

CLUTCH PLATE

CLUTCH DISK Outer, 1.9 mm Thick

1шт.

2

87742941

DISC,Axle, Friction

CLUTCH DISK Outer, 2.0 mm Thick

1шт.

3

87742942

CLUTCH DISC

CLUTCH DISK Inner

8шт.

4

87742943

THRUST WASHER

Thrust

2шт.

5

87742944

BEVEL GEAR

Axle

2шт.

6

87742945

BEVEL GEAR

Differential

4шт.

7

87742946

THRUST WASHER

Thrust

4шт.

8

87742956

AXLE DIFFERENTIAL

Differential

1шт.

9

87742957

AXLE DIFFERENTIAL

Differential Half

2шт.

10

84024216

LOCK PIN,5mm OD x 50mm L, Slotted

2шт.

11

87742960

PIN

Slot, 5 x 80 mm

2шт.

12

87742961

COVER

Housing

1шт.

13

184716A1

SCREW

Locking

12шт.

14

8603222

ROLLER BEARING,65mm ID x 140mm OD x 36mm W

2шт.
