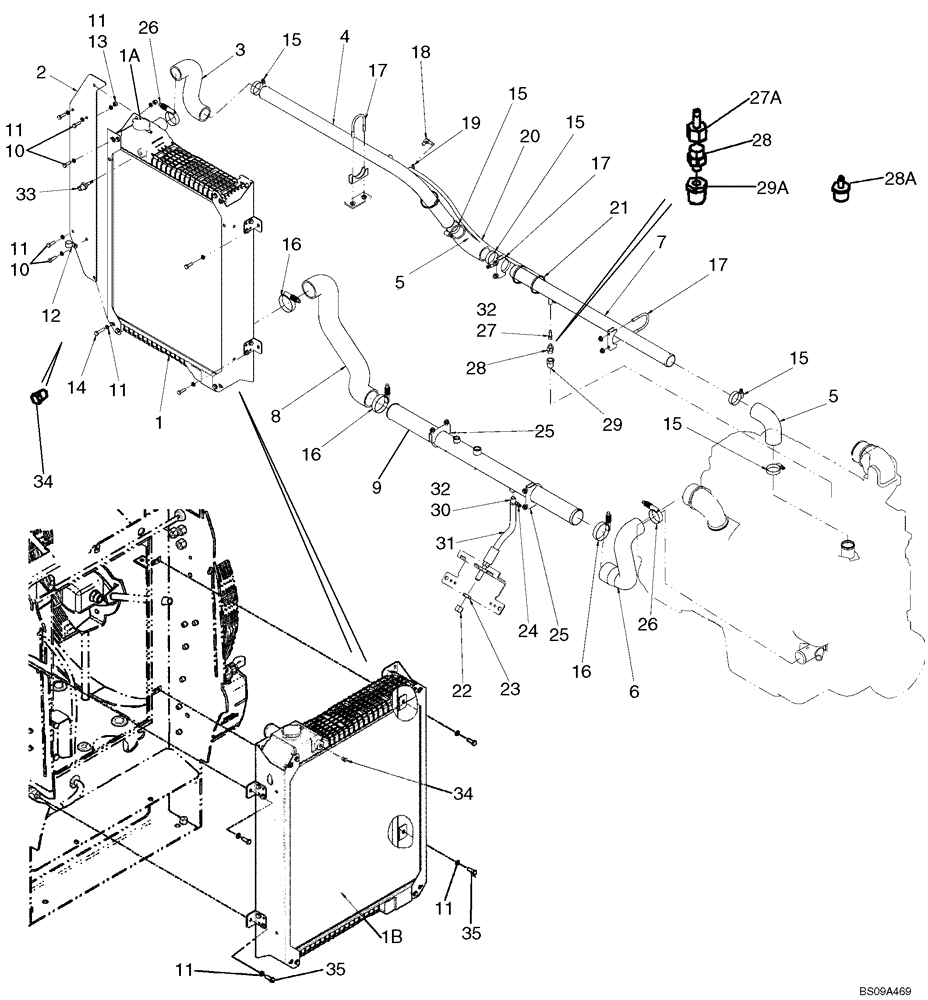

Запчасти Case 621E (02-02) - RADIATOR - HOSES AND TUBES (02) - ENGINE

1

8602421

RADIATOR

Standard Models; Incl. Ref. 1A

1шт.

1a

A170241

RADIATOR CAP

1шт.

1b

87740232

RADIATOR

RADIATOR, Commodity King Models; Incl. Ref. 1A

1шт.

2

87324042

PLATE

Radiator

1шт.

3

8500083

RADIATOR HOSE,44.50 mm ID x 165,105,79,61 mm, SAE 20R4 CLASS D1

Top

1шт.

4

87552495

HYD TUBE,41.2 mm ID x 44.5 mm OD x 734, 322 mm L

Top Coolant

1шт.

5

381232A1

HOSE,44.50 mm ID x 87.00 mm, SAE J20R4 Class D1

Elbow

2шт.

6

8500084

HOSE,48.00 mm ID, 57.20 mm ID x 235.00 mm, SAE 20R4 Class D1

Engine Bottom

1шт.

7

87446950

HYD TUBE,44.5 mm DIA x 767 mm L

Top Coolant

1шт.

8

87552485

HOSE

Radiator Bottom

1шт.

9

87325208

TUBE,57.20 mm DIA x 908 mm L

Bottom Coolant

1шт.

10

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

7шт.

11

892-11008

LOCK WASHER,8mm ID

12шт.

12

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

4шт.

13

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

14

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

1шт.

15

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

If Used

5шт.

16

L115548

CLAMP,57.15mm - 79.38mm

3шт.

15

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

If Used

5шт.

17

382189A1

CLAMP

3шт.

18

217-292

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

1шт.

19

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

20

87552499

HOSE,6.40 mm ID x 1150.00 mm

Coolant Breather

1шт.

21

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

3шт.

22

218-755

CAP,37 Degree, 3/4"-16

1шт.

23

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

1шт.

24

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

1шт.

25

393632A1

CLAMP

2шт.

26

254026A1

HOSE CLAMP,44.45mm - 66.67mm

2шт.

27

217-191

FITTING,1/4" Hose Barb x 1/8" Female NPTF

If Used

1шт.

27a

87752081

FITTING

1/4" Hose x 1/8" Female NPTF; If Used

1шт.

28

J911901

VALVE, CHECK

If Used; Used With Fittings and Reducer

1шт.

28a

87635840

VALVE

CHECK, Venting; Used In Setup Without Fitting and Reducer

1шт.

29

217-1035

REDUCER FITTING,1/2" - 14 Male NPTF x 3/8" - 18 Female NPTF

If Used

1шт.

29a

87752091

BUSHING

Reducer, 1/2" Male NPTF x 3/8" Female NPTF; If Used

1шт.

30

217-152

FITTING,1/2" Hose Barb x 3/8" Male NPTF

1шт.

31

87536091

HOSE ASSY.

Remote Coolant Drain, 330 mm (13 in)

1шт.

32

345-87

SEALANT

1шт.

33

419792A2

SENSOR

Coolant Level; If Used; See Figure 04-10 For Jumper Harness; Prior To

1шт.

34

217-402

PLUG,Hex Hd, 1/8" - 27 NPT

If Used; P.I.N. N8F204487 And After

1шт.

35

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.
