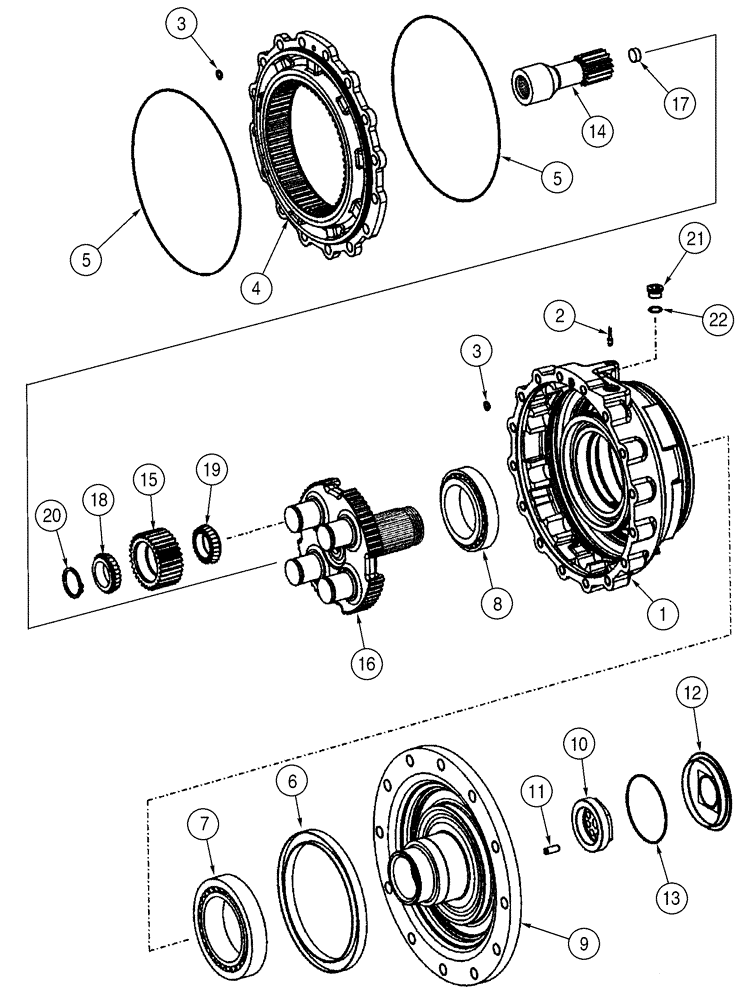

Запчасти Case 621E (06-45) - AXLE, FRONT - HUB, PLANETARY - PRIOR TO P.I.N. N8F203848 (06) - POWER TRAIN

87358580

FRONT AXLE

Limited Slip; Incl. Figures 06-41 - 06-45; Incl. Refs. 1 - 22; Prior To P.I.N. N8F203848

1шт.

87358580R

REMAN-FRT AXLE wo DL

621E Tier 3, Prior To PIN N8F203848

1шт.

87358580C

CORE-FRONT AXLE

Return Number

1шт.

87358680

END

Incl. Refs. 1 - 22; Incl. Figure 06-44

2шт.

87363338

REMAN-AXLE

END ASSY. Remanufactured 87358680; Parts In Catalog Do Not Apply to Remanufactured Assy

2шт.

87363332

CORE-AXLE

END ASSY. Return Number, Core 87358680, Use This Part Number To Return Core For Credit When Using A Remanufactured Assy

2шт.

1

87437916

HOUSING

1шт.

2

8603673

PLUG

1шт.

3

8603559

O-RING,2.5mm Thk x 12.5mm ID, 75 Duro

2шт.

4

8603560

RING GEAR,Planetary Ring

1шт.

5

8603674

O-RING,2.5mm Thk x 362mm ID, 70 Duro

2шт.

6

84150634

SEAL

SEALRING Replaces 8603562

1шт.

7

8603563

TAPERED BEARING

Outer

1шт.

8

8603564

TAPERED BEARING

Inner

1шт.

9

8603675

FLANGE

M22 x 1,5; Output

1шт.

10

8603565

NUT

1шт.

11

8603566

COTTER PIN

1шт.

12

8603567

COVER

1шт.

13

8603527

O-RING

1шт.

14

8603568

GEAR

1шт.

15

87358699

GEAR

4шт.

16

87358702

PLANET CARRIER

1шт.

17

8603571

PLUG

1шт.

18

8603572

ROLLER BEARING

Outer

4шт.

19

84219769

BEARING, ROLLER, CYL

4шт.

20

87358698

SNAP RING

4шт.

21

8603575

PLUG

1шт.

22

8603208

O-RING,2mm Thk x 21mm ID

1шт.
