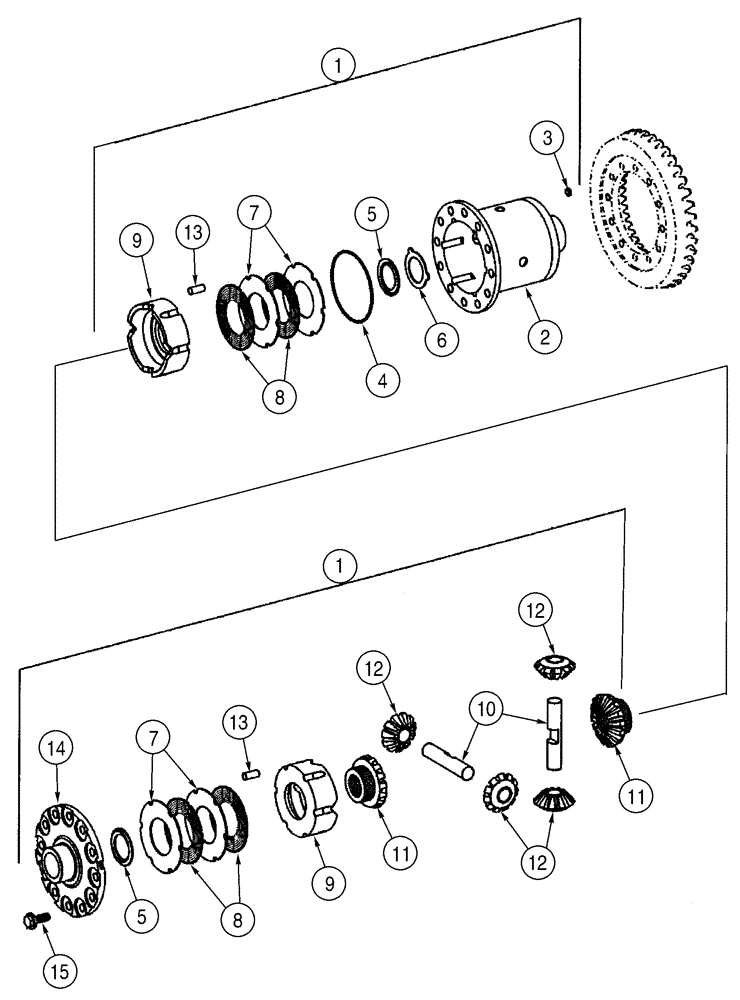

Запчасти Case 621E (06-43) - AXLE, FRONT - DIFFERENTIAL - PRIOR TO P.I.N. N8F203848 (06) - POWER TRAIN

87358580

FRONT AXLE

Limited Slip; Incl. Figures 06-41 - 06-45; Incl. Refs. 1 - 15; Prior To P.I.N. N8F203848

1шт.

87358580R

REMAN-FRT AXLE wo DL

621E Tier 3, Prior To PIN N8F203848

1шт.

87358580C

CORE-FRONT AXLE

Return Number

1шт.

8605272

CARRIER ASSY.

Limited Slip; Incl. Figure 06-42; Incl. Refs. 2 - 15

1шт.

1

8603546

AXLE DIFFERENTIAL

Incl. Refs. 2 - 15

1шт.

2

8603545

HOUSING

1шт.

3

8603271

SEAL

6шт.

4

8603250

SNAP RING

1шт.

5

8603251

THRUST WASHER

2шт.

6

8603282

THRUST WASHER

1шт.

7

8603277

CLUTCH PLATE

2.2 mm

1шт.

7

384276A1

CLUTCH DISC

CLUTCH DISK 2.1 mm; Outer

1шт.

7

8603278

CLUTCH PLATE,Steel

2.3 mm

1шт.

7

8603279

CLUTCH PLATE

2.4 mm

1шт.

7

8603280

CLUTCH PLATE

2.5 mm

1шт.

8

8603272

DISC

4шт.

9

8603252

SNAP RING

2шт.

10

8603253

SHAFT

2шт.

11

8603267

GEAR

16T

2шт.

12

8603254

PINION

11T

4шт.

13

8603255

PIN

12шт.

14

8603548

COVER

1шт.

15

8603268

BOLT,Lock

12шт.
