(02-01) - MOUNTING, ENGINE

Запчасти Case 621E (02-01) - MOUNTING, ENGINE (02) - ENGINE

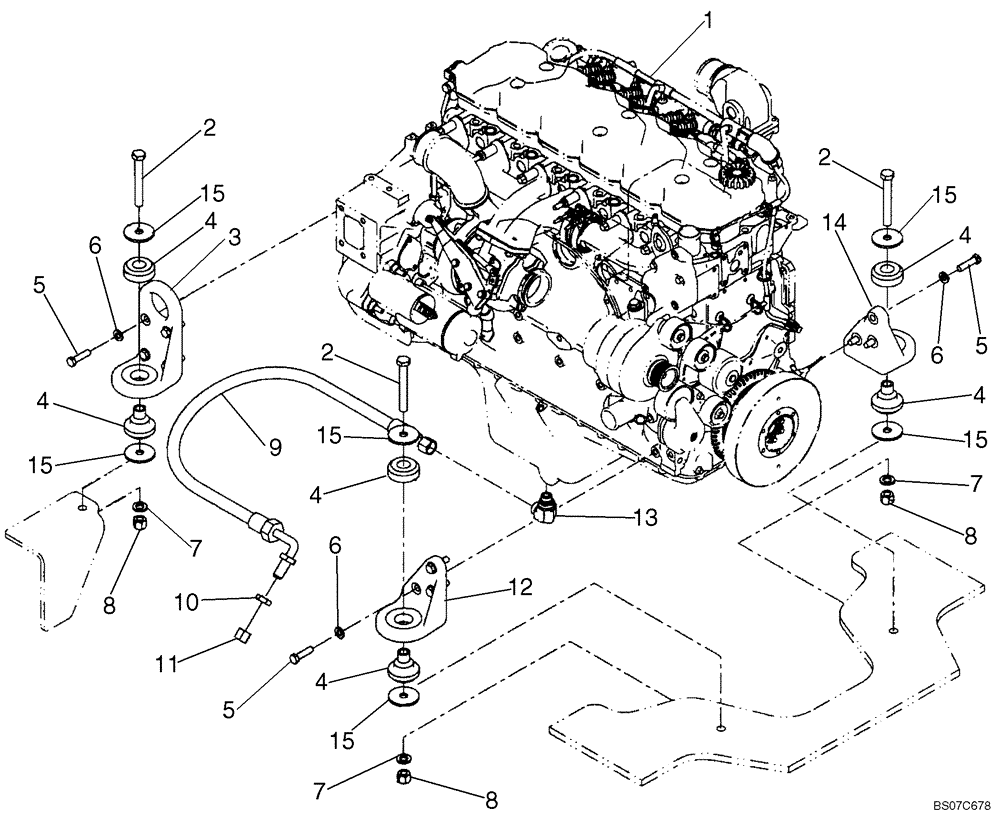

Схема запчастей Case 621E - (02-01) - MOUNTING, ENGINE (02) - ENGINE
15
5
4
15
4
4
4
10
15
8
8
6
2
2
5
7
3
15
7
9
12
5
8
15
14
4
1
15
6
11
13
4
6
2
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87579400

ENGINE

6 Cylinder 6.7L Turbo, Tier III; See Figures 02-09 - 02-13, 02-15 - 02-41, 03-05 - 03-11

1шт.

87752838C

CORE-ENGINE

Return Number, ENGINE - for N.A. Only

1шт.

2

827-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 10.9

4шт.

3

8602302

ENGINE MOUNT

Flywheel Housing

2шт.

4

361811A1

ISOLATOR

4шт.

5

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

14шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

14шт.

7

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

8

832-10416

NUT,M16 x 2, Cl 8

4шт.

9

397437A1

FLEXIBLE HOSE

Oil Pan Drain

1шт.

10

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

1шт.

11

218-756

CAP,37 Degree, 7/8"-14

1шт.

12

8602304

ENGINE MOUNT

Rear Left

1шт.

13

87426452

FITTING

1шт.

14

8602303

ENGINE MOUNT

Rear Right

1шт.

15

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

8шт.
