(06-37) - TRANSMISSION - VALVE, REGULATOR AND OIL PUMP - P.I.N. N8F203848 AND AFTER

Запчасти Case 621E (06-37) - TRANSMISSION - VALVE, REGULATOR AND OIL PUMP - P.I.N. N8F203848 AND AFTER (06) - POWER TRAIN

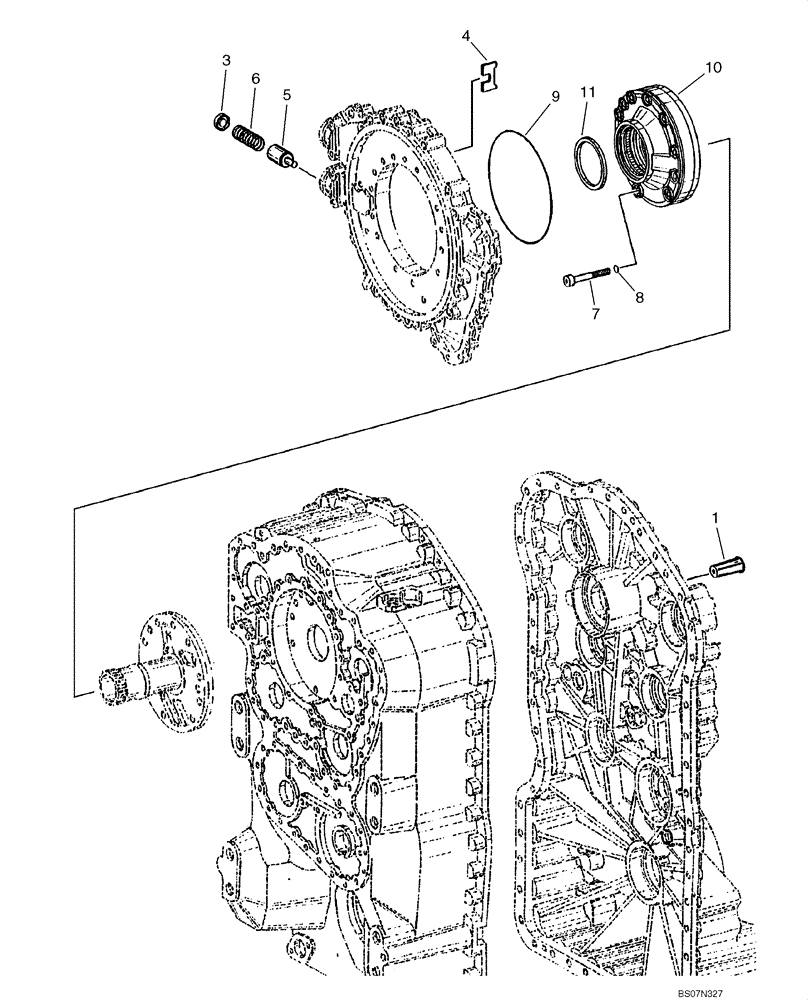

Схема запчастей Case 621E - (06-37) - TRANSMISSION - VALVE, REGULATOR AND OIL PUMP - P.I.N. N8F203848 AND AFTER (06) - POWER TRAIN
11
1
3
8
6
10
9
5
4
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87707540

TRANSMISSION

See Figures 06-21 - 06-38, 07-01; Incl. Refs. 1 - 11; P.I.N. N8F203848 And After

1шт.

87707540R

REMAN-TRANSMISSION

621E TIER 3 VALVE, REGULATOR AND OIL PUMP P.I.N. N8F203848, TRANSMISSION P.I.N. N8F203848 (8/07-)

1шт.

87707540C

CORE-TRANSMISSION

Return Number

1шт.

1

8603378

VALVE

1шт.

3

8603380

SPRING SEAT

Pressure

1шт.

4

8603381

PLATE

1шт.

5

8603382

PISTON

1шт.

6

8603383

SPRING

1шт.

7

8603384

SCREW

M10 x 75; Incl. Ref. 8

10шт.

8

8603385

O-RING

10шт.

9

87712668

O-RING,184.5" ID x 3" Width

1шт.

10

87711551

HYDRAULIC PUMP

Oil Pressure, Incl. Ref. 11

1шт.

11

8603391

SEAL

1шт.
