(06-36) - TRANSMISSION - VALVE, CONTROL - P.I.N. N8F203848 AND AFTER

Запчасти Case 621E (06-36) - TRANSMISSION - VALVE, CONTROL - P.I.N. N8F203848 AND AFTER (06) - POWER TRAIN

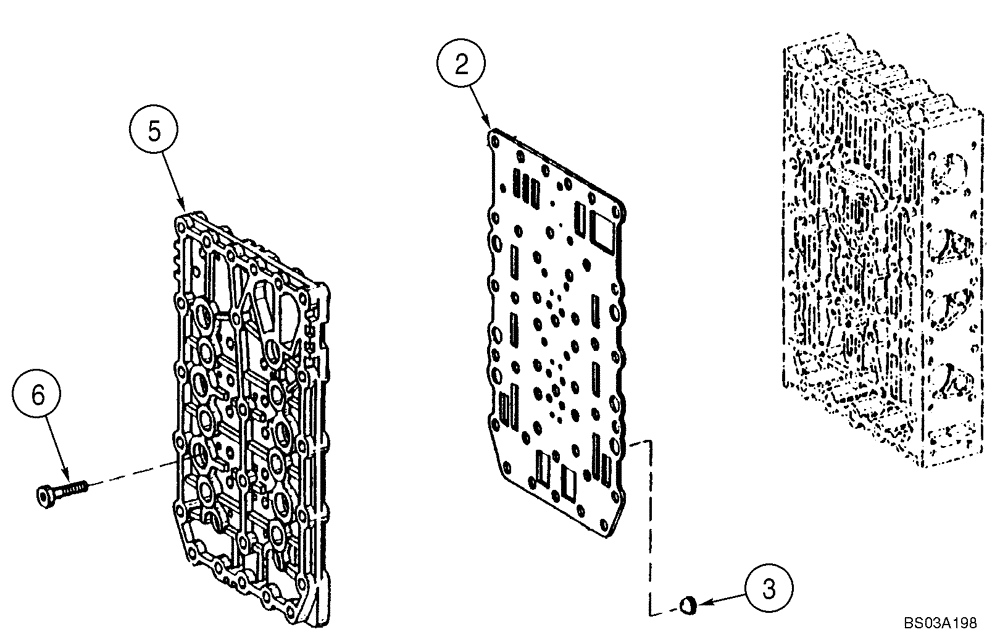

Схема запчастей Case 621E - (06-36) - TRANSMISSION - VALVE, CONTROL - P.I.N. N8F203848 AND AFTER (06) - POWER TRAIN
3
5
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87707540

TRANSMISSION

See Figures 06-21 - 06-38, 07-01; Incl. Refs. 2 - 6; P.I.N. N8F203848 And After

1шт.

87712671

CONTROL VALVE

Incl. 2 - 6; Incl. Figure 06-35

1шт.

2

87712667

PLATE

1шт.

3

8603363

SCREEN

Filter

6шт.

5

8603628

PLATE

Distribution

1шт.

6

8603183

SCREW,M6 x 23mm, Cl 10.9

M6 x 23

18шт.
