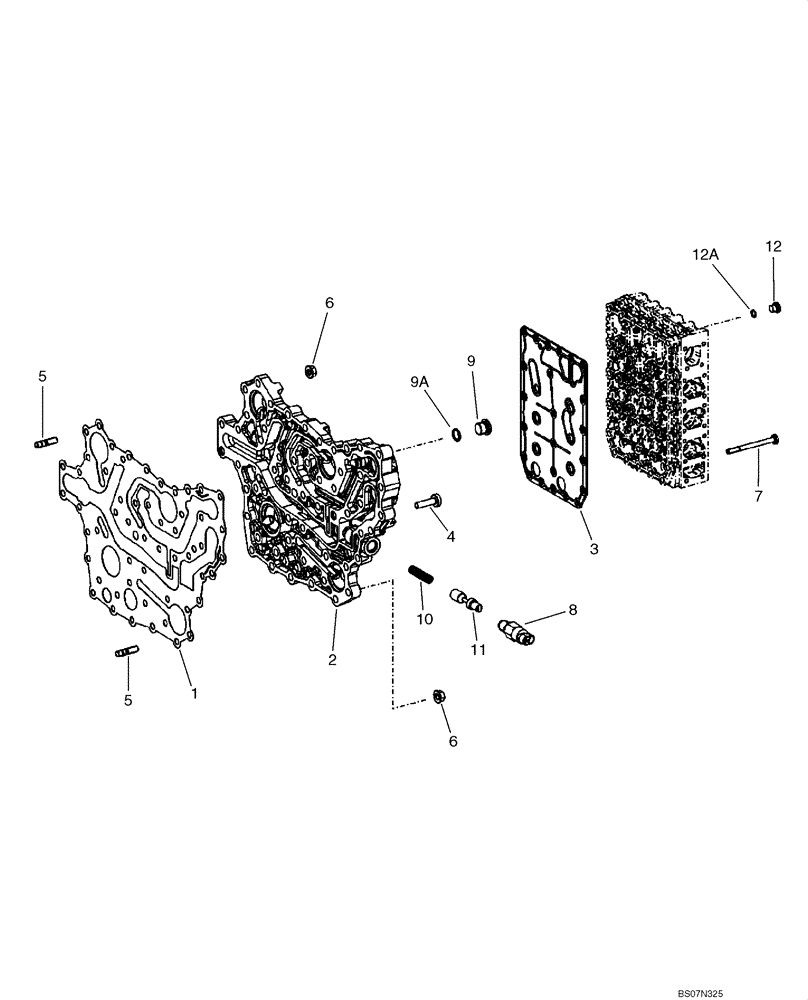

Запчасти Case 621E (06-34) - TRANSMISSION - VALVE PLATES - P.I.N. N8F203848 AND AFTER (06) - POWER TRAIN

87707540

TRANSMISSION

See Figures 06-21 - 06-38, 07-01; Incl. Refs. 1 - 12; P.I.N. N8F203848 And After

1шт.

87707540R

REMAN-TRANSMISSION

621E TIER 3 VALVE PLATES P.I.N. N8F203848 AND AFTER, TRANSMISSION P.I.N. N8F203848 (8/07-)

1шт.

87707540C

CORE-TRANSMISSION

Return Number

1шт.

1

8603184

GASKET

1шт.

2

8603185

MANIFOLD

1шт.

3

87712665

PLATE

1шт.

4

8603308

SCREW

37шт.

5

8604714

STUD

M8 x 25

14шт.

6

8603315

NUT

M8

14шт.

7

8603182

SCREW,M6 x 76mm

M6 x 76

23шт.

8

8603537

SWITCH

Filter Maintenance

1шт.

9

8603357

PLUG

M16 x 1.5; Incl. Ref. 9A

1шт.

9a

8603358

O-RING,2mm Thk x 13mm ID

1шт.

10

8603534

SPRING

1шт.

11

8603533

PISTON

1шт.

12

8603366

PLUG

Incl. Ref. 12A

1шт.

12a

8603215

O-RING,8mm ID x 1.5mm Width

1шт.
