(06-30) - TRANSMISSION - CLUTCH ASSY, FORWARD - P.I.N. N8F203848 AND AFTER

Запчасти Case 621E (06-30) - TRANSMISSION - CLUTCH ASSY, FORWARD - P.I.N. N8F203848 AND AFTER (06) - POWER TRAIN

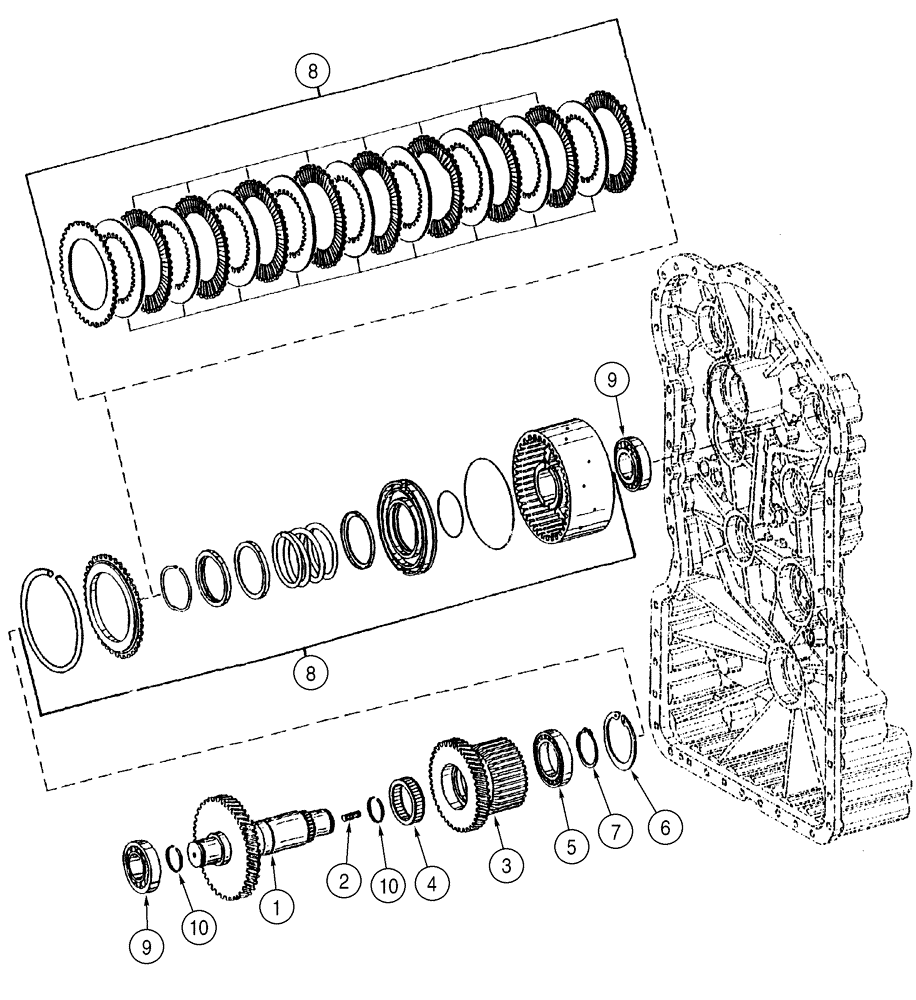

Схема запчастей Case 621E - (06-30) - TRANSMISSION - CLUTCH ASSY, FORWARD - P.I.N. N8F203848 AND AFTER (06) - POWER TRAIN
8
10
10
8
9
6
5
4
3
1
7
9
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87707540

TRANSMISSION

See Figures 06-21 - 06-38, 07-01; P.I.N. N8F203848 And After

1шт.

87707540R

REMAN-TRANSMISSION

621E TIER 3 CLUTCH ASSY, FORWARD P.I.N. N8F203848 AND AFTER, TRANSMISSION P.I.N. N8F203848 (8/07-)

1шт.

87707540C

CORE-TRANSMISSION

Return Number

1шт.

1

8603448

SHAFT

1шт.

2

8603407

STUD

M10 x 16

1шт.

3

8603449

IDLER GEAR

1шт.

4

8603450

NEEDLE BEARING CAGE

1шт.

5

8604716

BALL BEARING

1шт.

6

800-2190

SNAP RING,M90, Int

1шт.

7

8603452

CIRCLIP

1шт.

8

87715371

CLUTCH & DISC ASSY

COUPLING, Component Parts Not Serviced Separately

1шт.

9

8603435

ROLLER BEARING

2шт.

10

8603436

PISTON RING

2шт.
