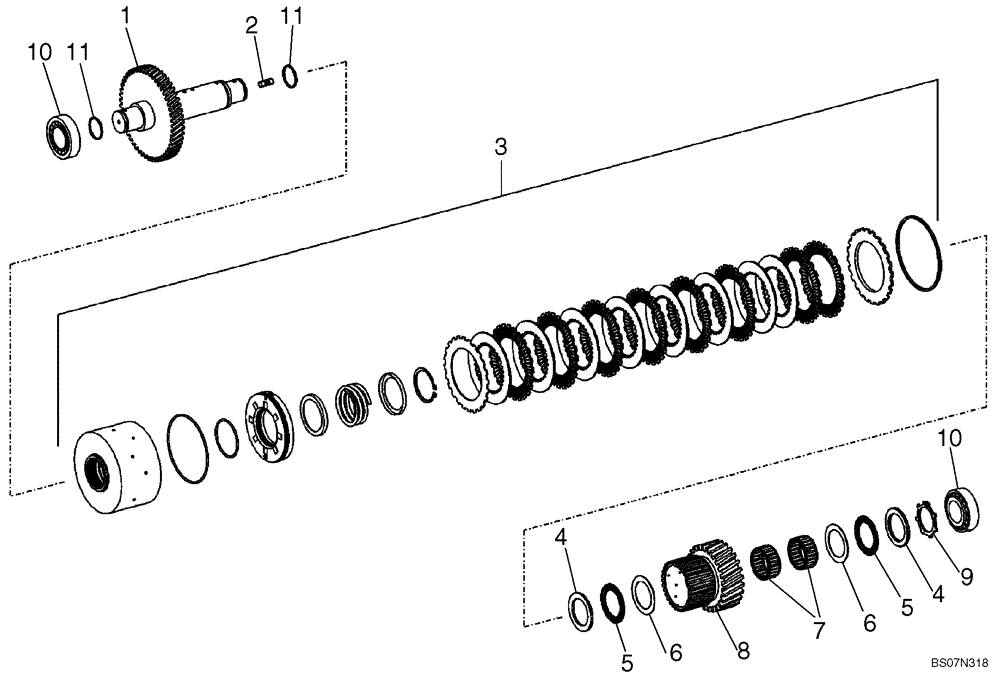

Запчасти Case 621E (06-27) - TRANSMISSION - CLUTCH ASSY, SECOND - P.I.N. N8F203848 AND AFTER (06) - POWER TRAIN

87707540

TRANSMISSION

See Figures 06-21 - 06-38, 07-01; Incl. Refs. 1 - 11; P.I.N. N8F203848 And After

1шт.

87707540R

REMAN-TRANSMISSION

621E TIER 3 CLUTCH ASSY, SECOND P.I.N. N8F203848 AND AFTER, TRANSMISSION P.I.N. N8F203848 (8/07-)

1шт.

87707540C

CORE-TRANSMISSION

Return Number

1шт.

1

8603437

SHAFT

1шт.

2

8603407

STUD

M10 x 16

1шт.

3

87560263

CLUTCH

ASSY, Component Parts Not Serviced Separately

1шт.

4

8603438

DISC

2шт.

5

8603439

THRUST BEARING

2шт.

6

8603440

THRUST WASHER

2шт.

7

8603441

NEEDLE BEARING CAGE

2шт.

8

87712653

IDLER

1шт.

9

8603442

RETAINER

1шт.

10

8603435

ROLLER BEARING

2шт.

11

8603436

PISTON RING

2шт.
