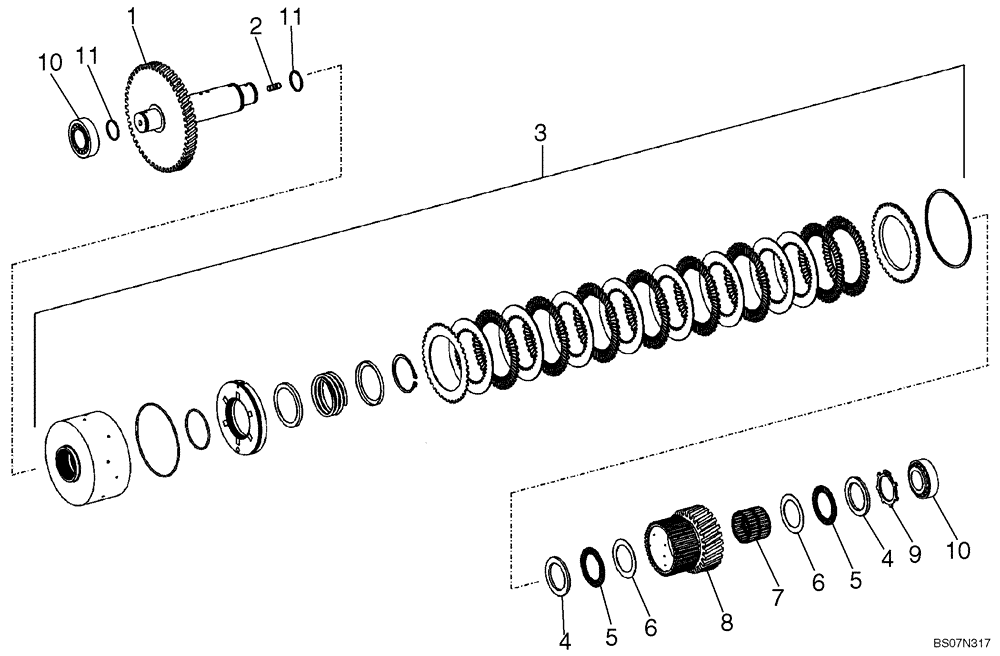

Запчасти Case 621E (06-26) - TRANSMISSION - CLUTCH ASSY, FIRST - P.I.N. N8F203848 AND AFTER (06) - POWER TRAIN

87707540

TRANSMISSION

See Figures 06-21 - 06-38, 07-01; Incl. Refs. 1 - 11; P.I.N. N8F203848 And After

1шт.

87707540R

REMAN-TRANSMISSION

621E TIER 3 CLUTCH ASSY, FIRST - P.I.N. N8F203848 AND AFTER, TRANSMISSION P.I.N. N8F203848 (8/07-)

1шт.

87707540C

CORE-TRANSMISSION

Return Number

1шт.

1

8603406

SHAFT

1шт.

2

8603407

STUD

M10 x 16

1шт.

3

87560261

CLUTCH

ASSY, Component Parts Not Serviced Separately

1шт.

4

8603430

DISC

2шт.

5

8603431

NEEDLE BEARING CAGE

2шт.

6

8603432

THRUST WASHER

2шт.

7

8603643

NEEDLE BEARING

1шт.

8

8605282

GEAR

1шт.

9

8603434

CIRCLIP

1шт.

10

8603435

ROLLER BEARING

2шт.

11

8603436

PISTON RING

2шт.
