(06-25) - TRANSMISSION ASSY - HOUSING TUBES - P.I.N. N8F203848 AND AFTER

Запчасти Case 621E (06-25) - TRANSMISSION ASSY - HOUSING TUBES - P.I.N. N8F203848 AND AFTER (06) - POWER TRAIN

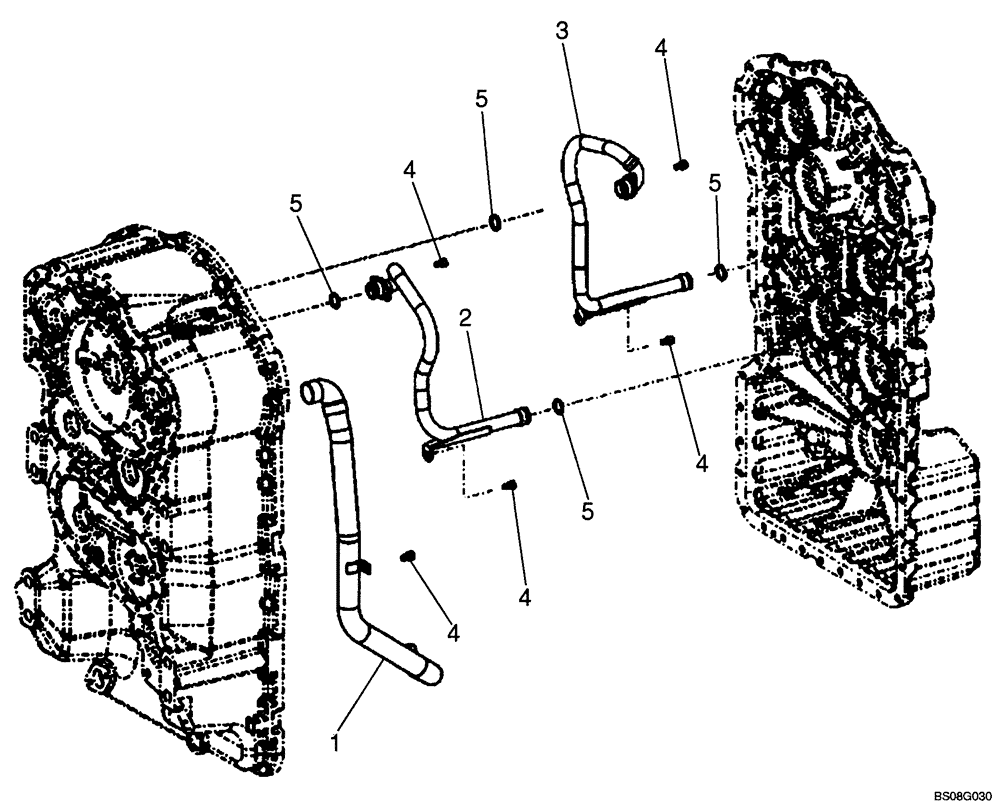

Схема запчастей Case 621E - (06-25) - TRANSMISSION ASSY - HOUSING TUBES - P.I.N. N8F203848 AND AFTER (06) - POWER TRAIN
4
4
5
4
5
4
5
5
3
5
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87707540

TRANSMISSION

See Figures 06-21 - 06-38, 07-01; Incl. Refs. 1 - 5; P.I.N. N8F203848 And After

1шт.

87707540R

REMAN-TRANSMISSION

621E TIER 3 ASSY - HOUSING TUBES P.I.N. N8F203848 AND AFTER, TRANSMISSION P.I.N. N8F203848 (8/07-)

1шт.

87707540C

CORE-TRANSMISSION

Return Number

1шт.

1

87715360

HYD TUBE

Suction

1шт.

2

8605280

TUBE

Oil

1шт.

3

8605281

TUBE

Oil

1шт.

4

8603306

SCREW,M8 x 12mm

M8 x 12

7шт.

5

8603725

O-RING

4шт.
