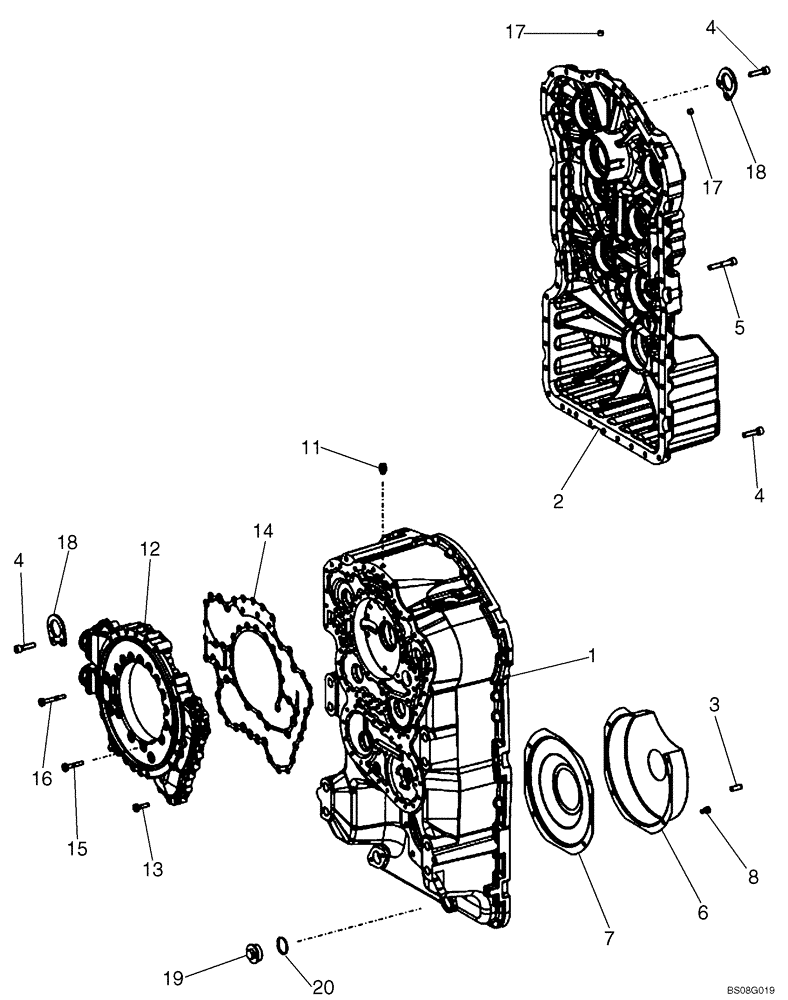

Запчасти Case 621E (06-24) - TRANSMISSION ASSY - HOUSING - P.I.N. N8F203848 AND AFTER (06) - POWER TRAIN

87707540

TRANSMISSION

See Figures 06-21 - 06-38, 07-01; Incl. Refs. 1 - 20; P.I.N. N8F203848 And After

1шт.

87707540R

REMAN-TRANSMISSION

621E TIER 3 ASSY - HOUSING P.I.N. N8F203848 AND AFTER, TRANSMISSION P.I.N. N8F203848 (8/07-)

1шт.

87707540C

CORE-TRANSMISSION

Return Number

1шт.

1

87712680

TRANSMISSION HOUSING

Front

1шт.

2

87742372

HOUSING

Rear

1шт.

3

1493416

PIN

M6 x 24

2шт.

4

8603469

SCREW,Hex, M10 x 40mm

M10 x 40

37шт.

5

87715358

SCREW

M10 x 60

6шт.

6

8603304

HOUSING

Gear

1шт.

7

8603305

GUARD

1шт.

8

8603306

SCREW,M8 x 12mm

4шт.

11

8603214

BREATHER

1шт.

12

87712648

HOUSING

1шт.

13

8603308

SCREW

15шт.

14

8603309

GASKET

1шт.

15

8603310

SCREW,M8 x 45mm, Cl 10.9

21шт.

16

8603311

SCREW

4шт.

17

87715359

PLUG

4шт.

18

8603316

PLATE

2шт.

19

8603319

PLUG

Incl. Ref. 20

1шт.

20

8603318

O-RING

1шт.
