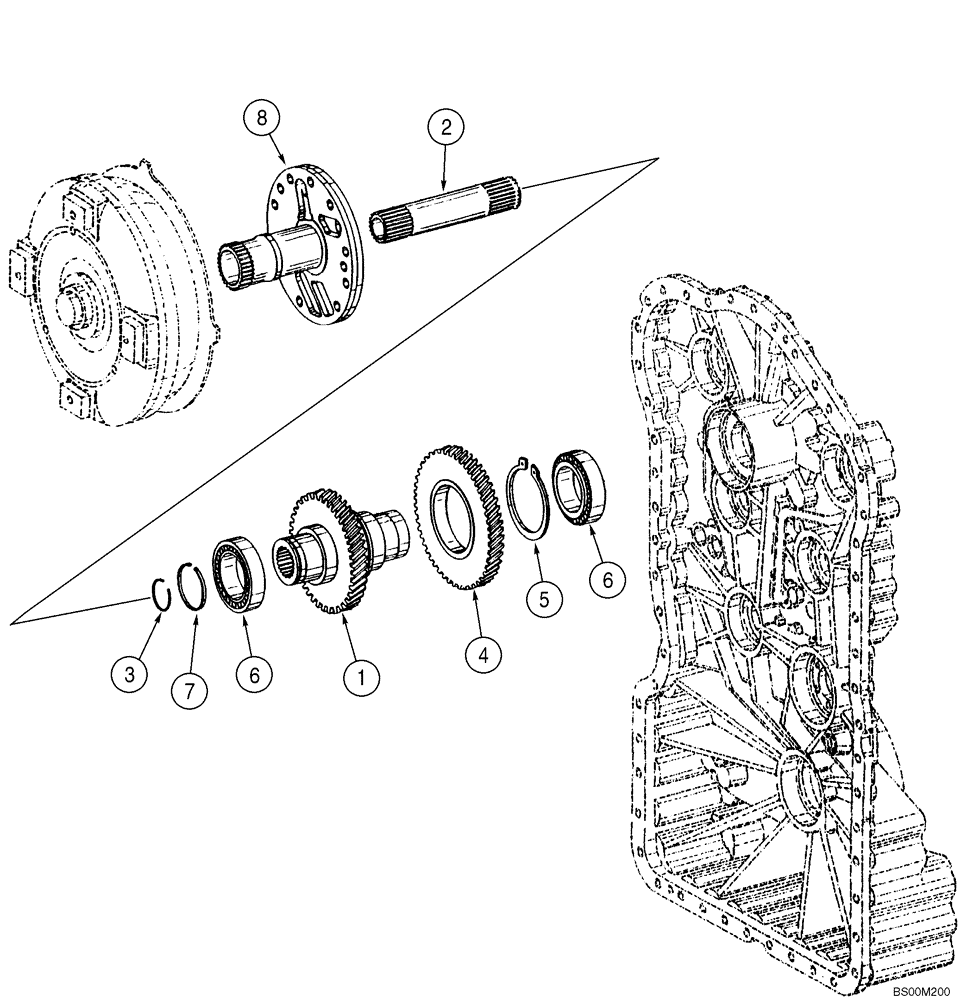

Запчасти Case 621E (06-23) - TRANSMISSION - INPUT SHAFT - P.I.N. N8F203848 AND AFTER (06) - POWER TRAIN

87707540

TRANSMISSION

See Figures 06-21 - 06-38, 07-01; Incl. Refs. 1 - 8; P.I.N. N8F203848 And After

1шт.

87707540R

REMAN-TRANSMISSION

621E TIER 3 INPUT SHAFT P.I.N. N8F203848 AND AFTER, TRANSMISSION P.I.N. N8F203848 (8/07-)

1шт.

87707540C

CORE-TRANSMISSION

Return Number

1шт.

1

8603296

SHAFT

Input

1шт.

2

8603297

SHAFT

Turbine

1шт.

3

8603298

SNAP RING

1шт.

4

8603299

DRIVING GEAR

Input

1шт.

5

8603300

SNAP RING

1шт.

6

8603301

ROLLER BEARING,60mm ID x 95mm OD x 27mm W

2шт.

7

8603302

PISTON RING

1шт.

8

87712679

SHAFT

Input

1шт.
