(06-22) - TRANSMISSION - CONVERTER, COVER AND INPUT SHAFT - P.I.N. N8F203848 AND AFTER

Запчасти Case 621E (06-22) - TRANSMISSION - CONVERTER, COVER AND INPUT SHAFT - P.I.N. N8F203848 AND AFTER (06) - POWER TRAIN

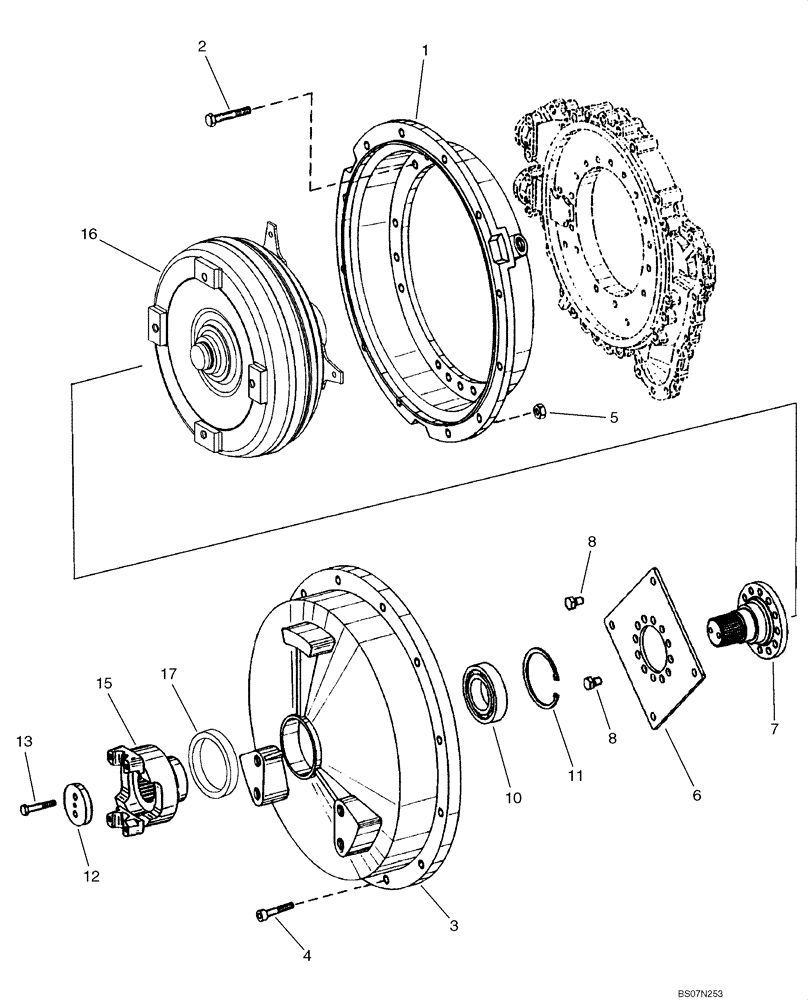

Схема запчастей Case 621E - (06-22) - TRANSMISSION - CONVERTER, COVER AND INPUT SHAFT - P.I.N. N8F203848 AND AFTER (06) - POWER TRAIN
12
10
1
4
17
3
16
13
6
2
8
7
8
11
15
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87707540

TRANSMISSION

See Figures 06-21 - 06-38, 07-01; Incl. Refs. 1 - 17; P.I.N. N8F203848 And After

1шт.

87707540R

REMAN-TRANSMISSION

621E TIER 3 CONVERTER, COVER AND INPUT SHAFT P.I.N. N8F203848, TRANSMISSION P.I.N. N8F203848 (8/07-)

1шт.

87707540C

CORE-TRANSMISSION

Return Number

1шт.

1

8603292

BELL HOUSING

1шт.

2

8603293

SCREW,Hex, M10 x 65mm

M10 x 65

18шт.

3

8604676

COVER

1шт.

4

8603466

SCREW,M10 x 50mm

M10 x 40

12шт.

5

829-1510

NUT,M10, Cl 10

12шт.

6

8603633

DIAPHRAGM

1шт.

7

87712322

SHAFT

Input

1шт.

8

8603294

SCREW,Hex, M12 x 18mm

M12 x 18

16шт.

10

8604678

BALL BEARING

1шт.

11

87410351

SNAP RING

1шт.

12

8603635

WASHER

1шт.

13

8603405

BOLT,Hex, M8 x 50mm

M8 X 50

2шт.

15

8603637

YOKE

1шт.

16

87712647

CONVERTER

Torque

1шт.

16

87712647R

REMAN-TORQUE CONVERT

ER Remanufactured

1шт.

16

87712647C

CORE-TORQUE CONVERTR

CORE-TORQUE CONVERTER Return Number

1шт.

17

8604229

RING

1шт.
