(06-21) - TRANSMISSION - FILTER, OIL AND FILLER COVER - P.I.N. N8F203848 AND AFTER

Запчасти Case 621E (06-21) - TRANSMISSION - FILTER, OIL AND FILLER COVER - P.I.N. N8F203848 AND AFTER (06) - POWER TRAIN

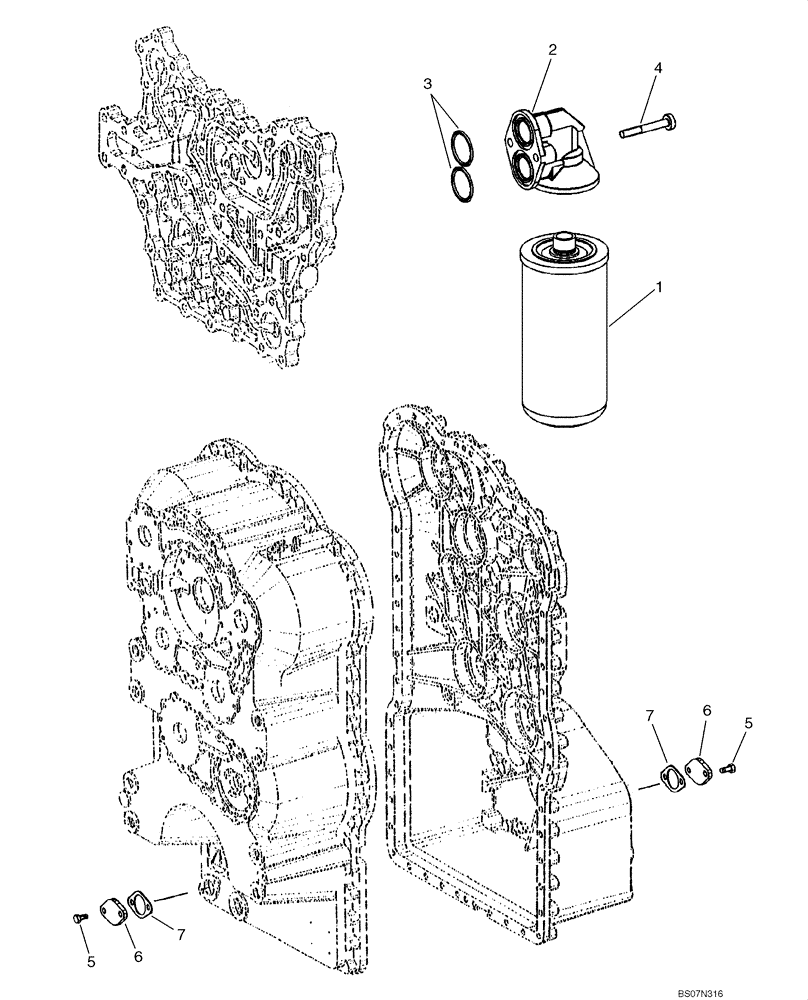

Схема запчастей Case 621E - (06-21) - TRANSMISSION - FILTER, OIL AND FILLER COVER - P.I.N. N8F203848 AND AFTER (06) - POWER TRAIN
6
7
4
5
6
5
2
7
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87707540

TRANSMISSION

See Figures 06-21 - 06-38, 07-01, Incl. Refs. 1 - 7; P.I.N. N8F203848 And After

1шт.

87707540R

REMAN-TRANSMISSION

621E TIER 3 FILTER, OIL AND FILLER COVER - P.I.N. N8F203848 AND AFTER, TRANSMISSION P.I.N. N8F203848 (8/07-)

1шт.

87707540C

CORE-TRANSMISSION

Return Number

1шт.

1

87519452

HYDRAULIC OIL FILTER

Transmission

1шт.

2

8603403

FILTER HEAD

1шт.

3

87712670

O-RING

2шт.

4

8603311

SCREW

2шт.

5

8603396

BOLT,Hex, M8 x 18mm

M8 x 18

4шт.

6

8603217

COVER

2шт.

7

8603281

GASKET

2шт.
