(06-20) - TRANSMISSION - SENSOR, SPEED AND PUMP COVER - PRIOR TO P.I.N. N8F203848

Запчасти Case 621E (06-20) - TRANSMISSION - SENSOR, SPEED AND PUMP COVER - PRIOR TO P.I.N. N8F203848 (06) - POWER TRAIN

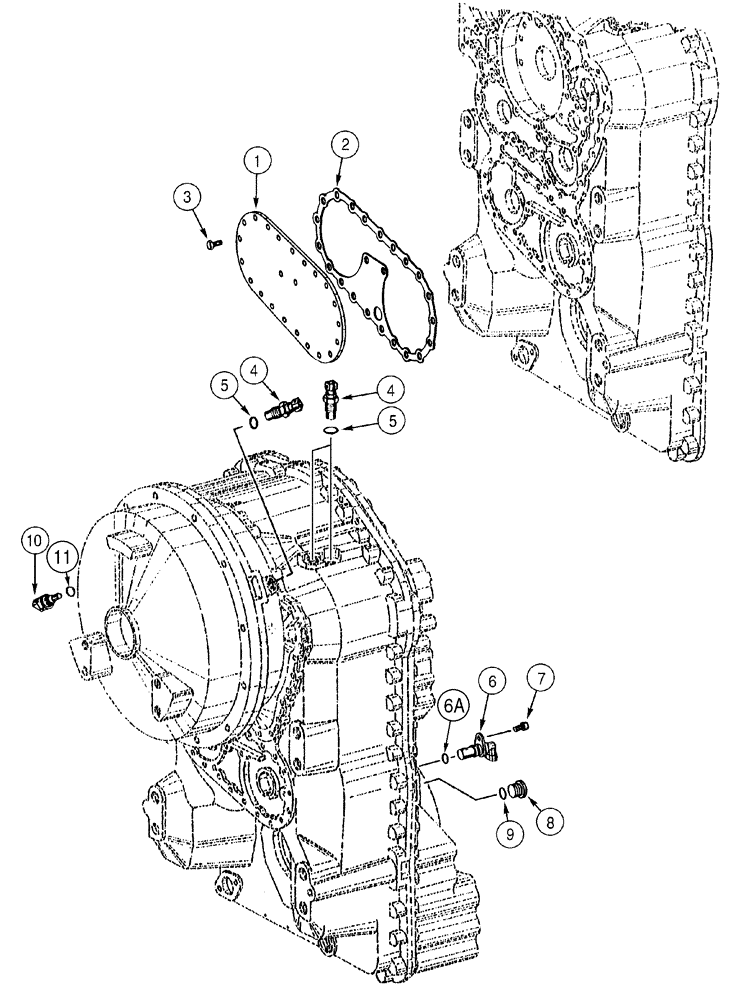

Схема запчастей Case 621E - (06-20) - TRANSMISSION - SENSOR, SPEED AND PUMP COVER - PRIOR TO P.I.N. N8F203848 (06) - POWER TRAIN
7
6a
5
3
4
11
9
1
8
6
4
10
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87572394

TRANSMISSION

See Figures 06-03 - 06-20, 07-01; Incl. Refs. 1 - 11; Prior To P.I.N. N8F203848

1шт.

1

8603393

COVER

Steering Pump

1шт.

2

8603395

GASKET

1шт.

3

8603396

BOLT,Hex, M8 x 18mm

M8 x 18

23шт.

4

8603397

SENSOR

Inductive Coupling

3шт.

5

87453989

O-RING

3шт.

6

8603398

SENSOR

Speed, Output; Incl. Ref. 6A

1шт.

6a

8603629

O-RING

1шт.

7

8603399

SCREW,M8 x 16mm

1шт.

8

8603400

PLUG

Incl. Ref. 9

1шт.

9

8603401

O-RING,2mm Thk x 23mm ID

1шт.

10

87712669

SENSOR

Trans. Oil Temp, Incl. Ref. 11

1шт.

11

8603402

O-RING

1шт.
