(06-19) - TRANSMISSION - VALVE, REGULATOR AND OIL PUMP - PRIOR TO P.I.N. N8F203848

Запчасти Case 621E (06-19) - TRANSMISSION - VALVE, REGULATOR AND OIL PUMP - PRIOR TO P.I.N. N8F203848 (06) - POWER TRAIN

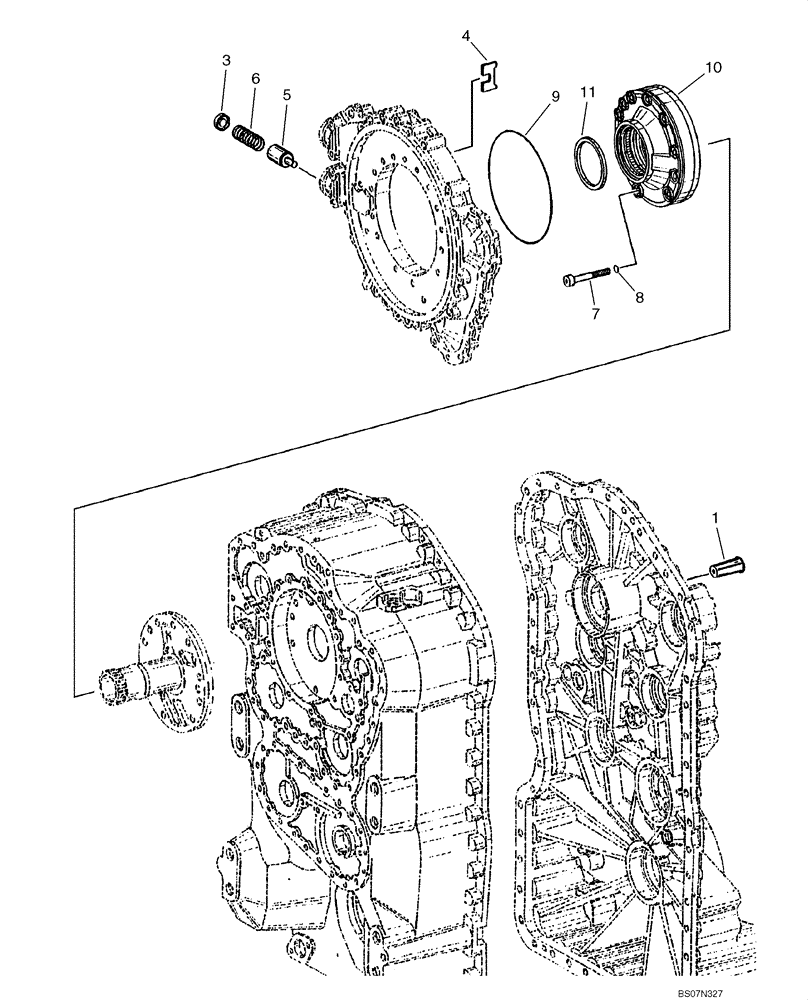

Схема запчастей Case 621E - (06-19) - TRANSMISSION - VALVE, REGULATOR AND OIL PUMP - PRIOR TO P.I.N. N8F203848 (06) - POWER TRAIN
1
9
10
8
7
6
5
4
11
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87572394

TRANSMISSION

See Figures 06-03 - 06-20, 07-01; Incl. Refs. 1 - 11; Prior To P.I.N. N8F203848

1шт.

1

8603378

VALVE

1шт.

3

8603380

SPRING SEAT

Pressure

1шт.

4

8603381

PLATE

1шт.

5

8603382

PISTON

1шт.

6

8603383

SPRING

1шт.

7

8603384

SCREW

Incl. Ref. 8

10шт.

8

8603385

O-RING

10шт.

9

87712668

O-RING,184.5" ID x 3" Width

1шт.

10

87711551

HYDRAULIC PUMP

Oil Pressure, Incl. Ref. 11

1шт.

11

8603391

SEAL

1шт.
