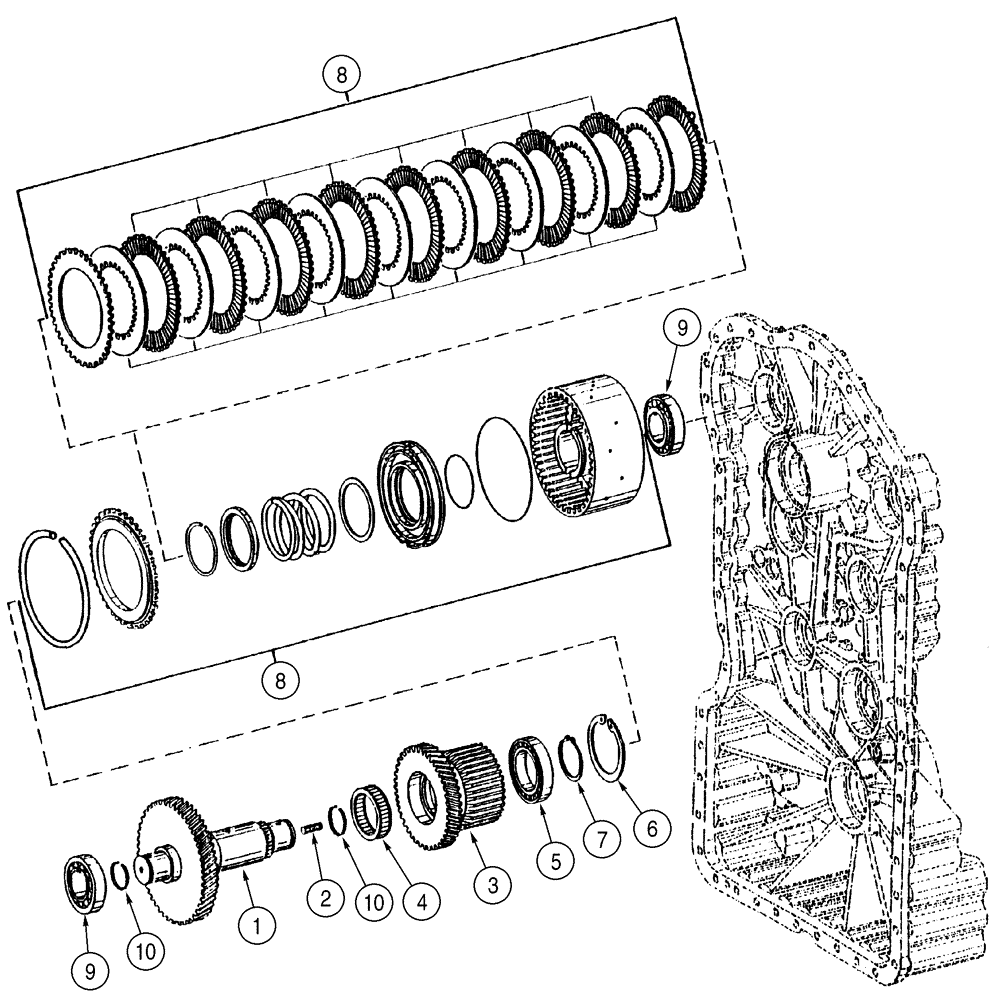

Запчасти Case 621E (06-13) - TRANSMISSION - CLUTCH ASSY, REVERSE - PRIOR TO P.I.N. N8F203848 (06) - POWER TRAIN

87572394

TRANSMISSION

See Figures 06-03 - 06-20, 07-01; Incl. Refs. 1 - 10; Prior To P.I.N. N8F203848

1шт.

1

8603457

SHAFT

1шт.

2

8603407

STUD

M10 x 16

1шт.

3

8603449

IDLER GEAR

1шт.

4

8603450

NEEDLE BEARING CAGE

1шт.

5

8604716

BALL BEARING

1шт.

6

800-2190

SNAP RING,M90, Int

1шт.

7

8603452

CIRCLIP

1шт.

8

87560266

CLUTCH

ASSY, Component Parts Not Serviced Separately

1шт.

9

8603435

ROLLER BEARING

2шт.

10

8603436

PISTON RING

2шт.
