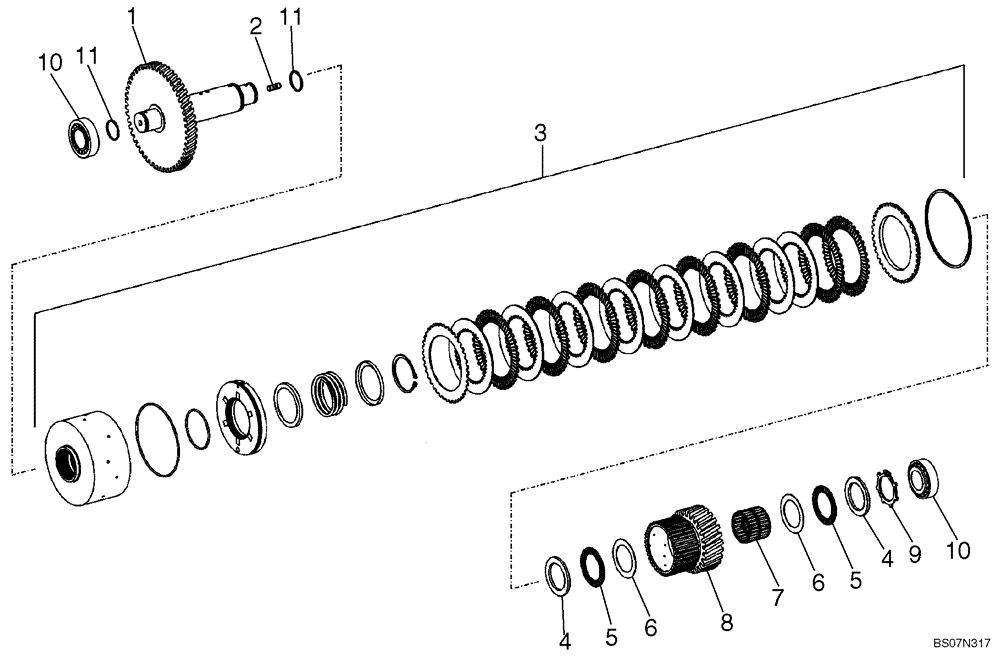

Запчасти Case 621E (06-08) - TRANSMISSION - CLUTCH ASSY, FIRST - PRIOR TO P.I.N. N8F203848 (06) - POWER TRAIN

87572394

TRANSMISSION

See Figures 06-03 - 06-20, 07-01; Incl. Refs. 1 - 11; Prior To P.I.N. N8F203848

1шт.

1

8603406

SHAFT

1шт.

2

8603407

STUD

M10 x 16

1шт.

3

87560261

CLUTCH

ASSY, Component Parts Not Serviced Separately

1шт.

4

8603430

DISC

2шт.

5

8603431

NEEDLE BEARING CAGE

2шт.

6

8603432

THRUST WASHER

2шт.

7

8603643

NEEDLE BEARING

1шт.

8

8605282

GEAR

1шт.

9

8603434

CIRCLIP

1шт.

10

8603435

ROLLER BEARING

2шт.

11

8603436

PISTON RING

2шт.
