(06-07) - TRANSMISSION ASSY - HOUSING TUBES - PRIOR TO P.I.N. N8F203848

Запчасти Case 621E (06-07) - TRANSMISSION ASSY - HOUSING TUBES - PRIOR TO P.I.N. N8F203848 (06) - POWER TRAIN

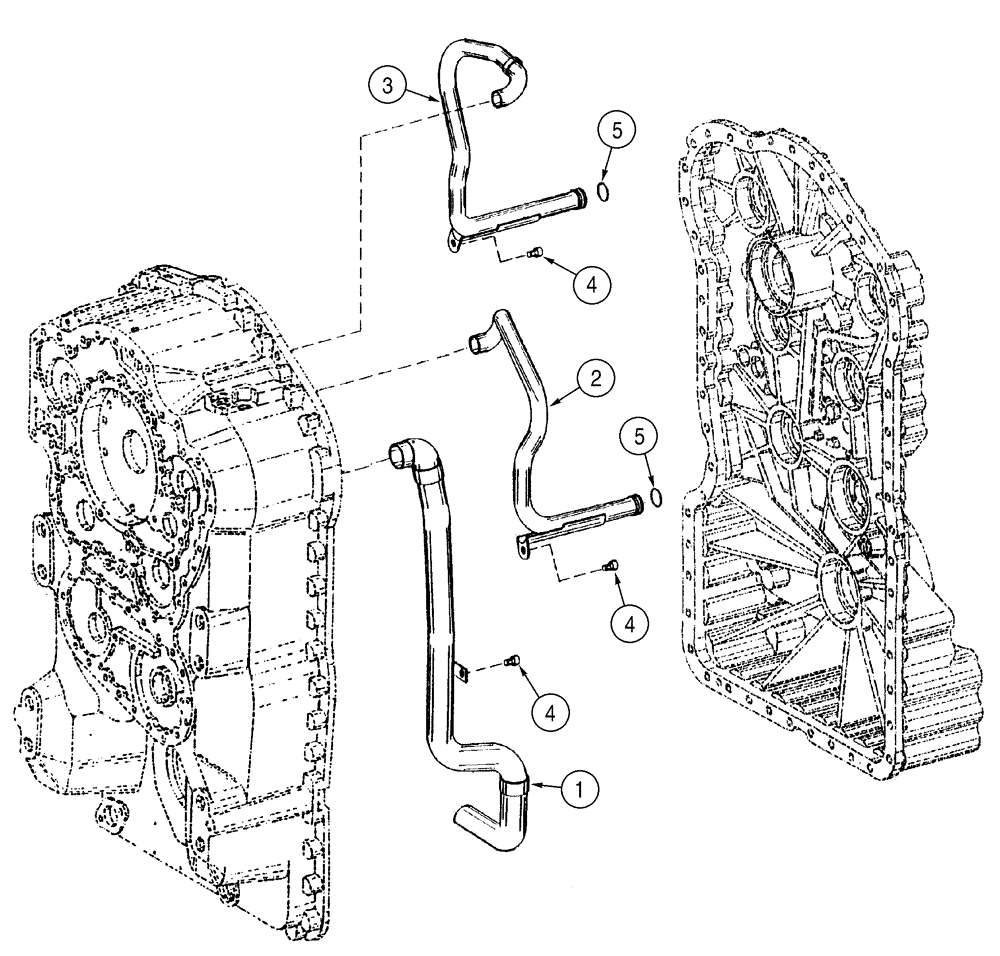

Схема запчастей Case 621E - (06-07) - TRANSMISSION ASSY - HOUSING TUBES - PRIOR TO P.I.N. N8F203848 (06) - POWER TRAIN
5
1
2
3
4
4
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87572394

TRANSMISSION

See Figures 06-03 - 06-20, 07-01; Incl. Refs. 1 - 5; Prior To P.I.N. N8F203848

1шт.

87572394R

REMAN-TRANSMISSION

Remanufactured, 4WD

1шт.

87572394C

CORE-TRANSMISSION

Return Number, 4WD

1шт.

1

8603320

TUBE

Suction

1шт.

2

8605280

TUBE

1шт.

3

8605281

TUBE

1шт.

4

8603306

SCREW,M8 x 12mm

3шт.

5

8603725

O-RING

Replaces 8603323 O-Ring

2шт.
