(06-03) - TRANSMISSION - FILTER, OIL AND FILLER COVER - PRIOR TO P.I.N. N8F203848

Запчасти Case 621E (06-03) - TRANSMISSION - FILTER, OIL AND FILLER COVER - PRIOR TO P.I.N. N8F203848 (06) - POWER TRAIN

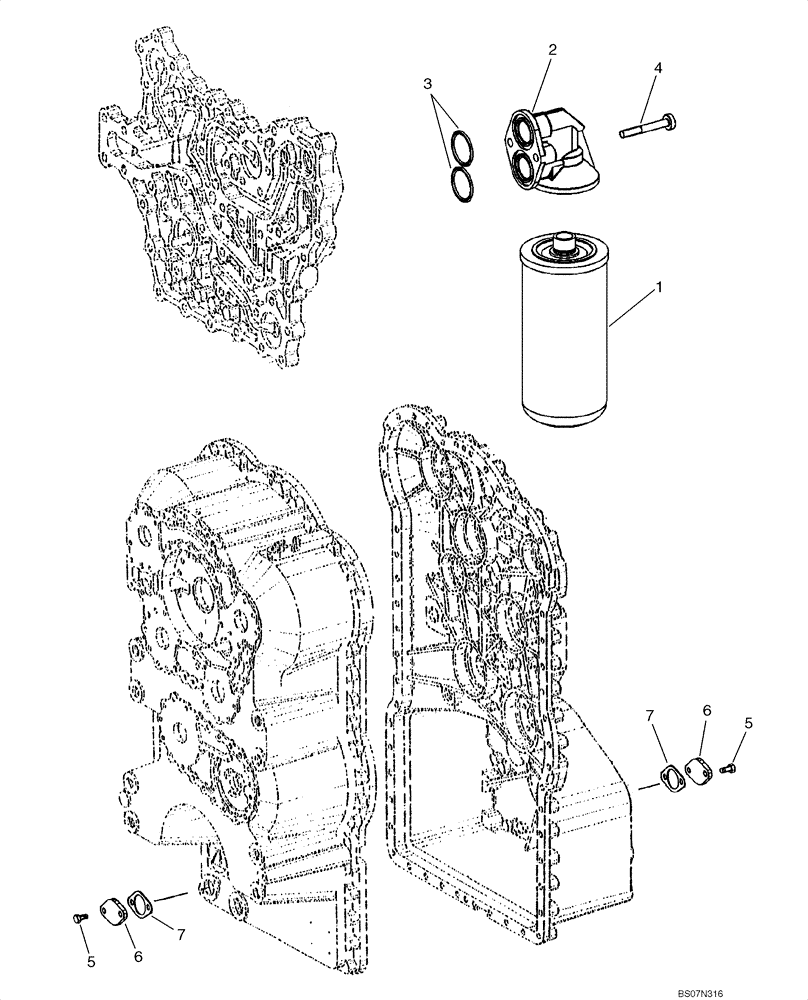

Схема запчастей Case 621E - (06-03) - TRANSMISSION - FILTER, OIL AND FILLER COVER - PRIOR TO P.I.N. N8F203848 (06) - POWER TRAIN
5
6
7
1
2
6
4
3
5
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87572394

TRANSMISSION

See Figures 06-03 - 06-20, 07-01, Incl. Refs. 1 - 7; Prior To P.I.N. N8F203848

1шт.

1

84491498

HYDRAULIC OIL FILTER

Transmission

1шт.

2

8603403

FILTER HEAD

1шт.

3

87712670

O-RING

2шт.

4

8603311

SCREW

2шт.

5

8603396

BOLT,Hex, M8 x 18mm

M8 x 18

4шт.

6

8603217

COVER

2шт.

7

8603281

GASKET

2шт.
