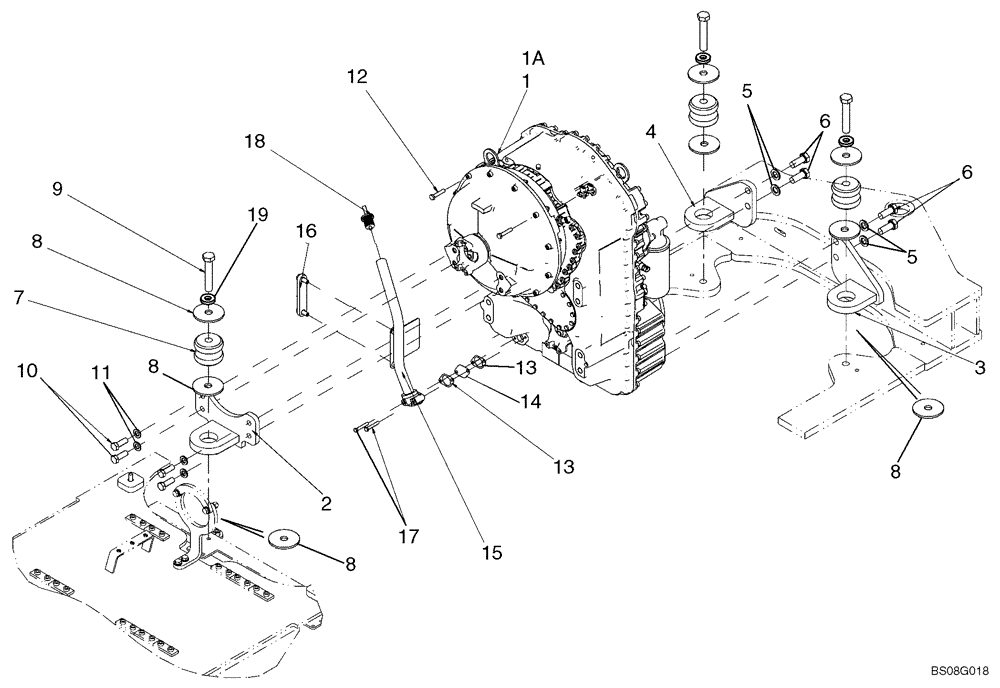

Запчасти Case 621E (06-01) - MOUNTING - TRANSMISSION - TRANSMISSION FILL TUBE (06) - POWER TRAIN

1

87572394

TRANSMISSION

WG-160 4-Speed Transmission, Includes Parts on Figures 06-03 - 06-20, 07-01; Prior To P.I.N. N8F203848

1шт.

1

87572394R

REMAN-TRANSMISSION

Remanufactured, 4WD

1шт.

1

87572394C

CORE-TRANSMISSION

Return Number, 4WD

1шт.

1a

87707540

TRANSMISSION

WG-160 4-Speed Transmission (Facelift), Includes Parts on Figures 06-21 - 06-38, 07-01; P.I.N. N8F203848 And After

1шт.

1a

87707540R

REMAN-TRANSMISSION

621E TIER 3 TRANSMISSION P.I.N. N8F203848 (8/07-)

1шт.

1a

87707540C

CORE-TRANSMISSION

Return Number

1шт.

2

87552960

BRACKET

Top, Transmission Mount

1шт.

3

87552958

BRACKET

Right, Transmission Mount

1шт.

4

87552959

BRACKET

Left, Transmission Mount

1шт.

5

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

6

627-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd

4шт.

7

361187A1

ISOLATOR

Transmission Bracket

3шт.

8

379611A1

WASHER

6шт.

9

827-22120

BOLT,Hex, M22 x 2.5 x 120mm, Cl 10.9

3шт.

10

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

4шт.

11

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

12

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

2шт.

13

8603281

GASKET

2шт.

14

E135229

FILTER SCREEN

2шт.

15

87653616

TUBE,31.75 mm OD x 441, 100 mm L

Transmission Fill

1шт.

16

86988366

SIGHTGLASS

Oil Level

1шт.

17

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

2шт.

18

443565A1

CAP

Transmission Fill

1шт.

19

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

3шт.
