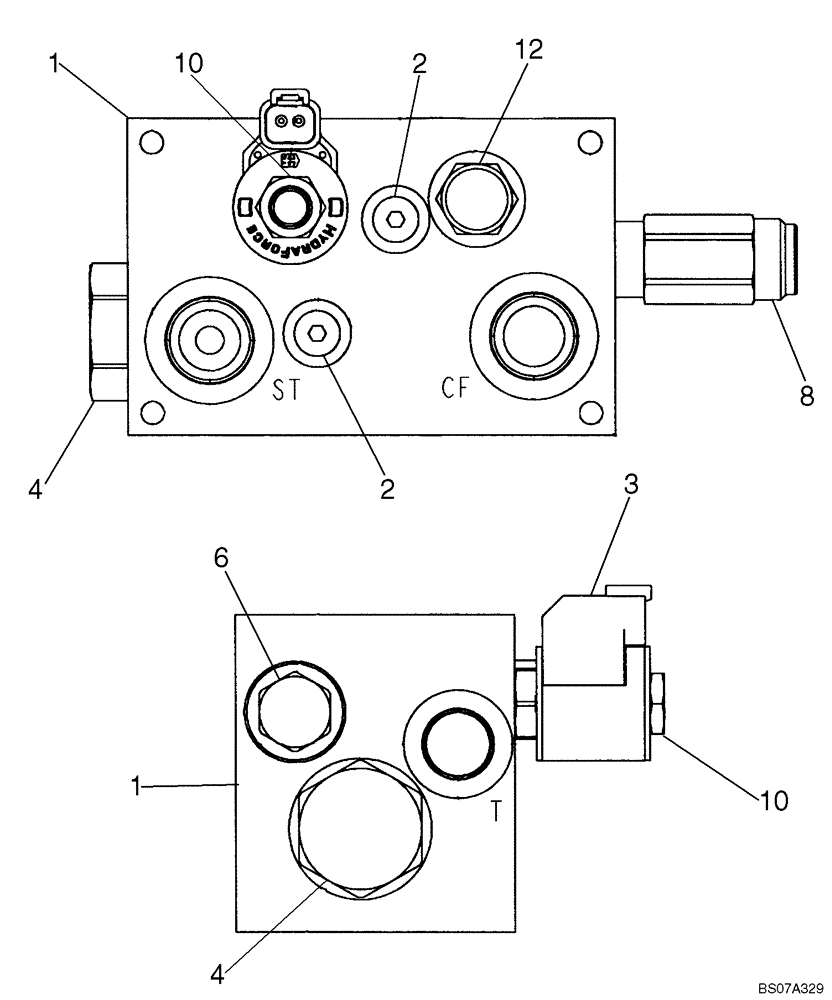

Запчасти Case 621E (05-19) - VALVE ASSY - STEERING, AUXILIARY (05) - STEERING

1

87609806

MANIFOLD

Auxiliary Steering; Incl. Refs. 2 - 13

1шт.

2

87365409

PLUG

Orifice

1шт.

3

87617170

COIL

Solenoid; Replaces 87365413

1шт.

4

87365418

CHECK VALVE

Incl. Ref. 5

1шт.

5

87365420

SEAL KIT

Check Valve; Not Illustrated

1шт.

6

87365422

CHECK VALVE

Incl. Ref. 7

1шт.

7

1542831C1

SEAL KIT

Not Illustrated

1шт.

8

87365425

VALVE, PRESSURE RELI

EF Incl. Ref. 9

1шт.

9

1542831C1

SEAL KIT

Not Illustrated

1шт.

10

87365427

SPOOL

Incl. Ref. 11

1шт.

11

87365429

SEAL KIT

Not Illustrated

1шт.

12

87365430

ELEMENT

Logic; Incl. Ref. 13

1шт.

13

87365429

SEAL KIT

Not Illustrated

1шт.
