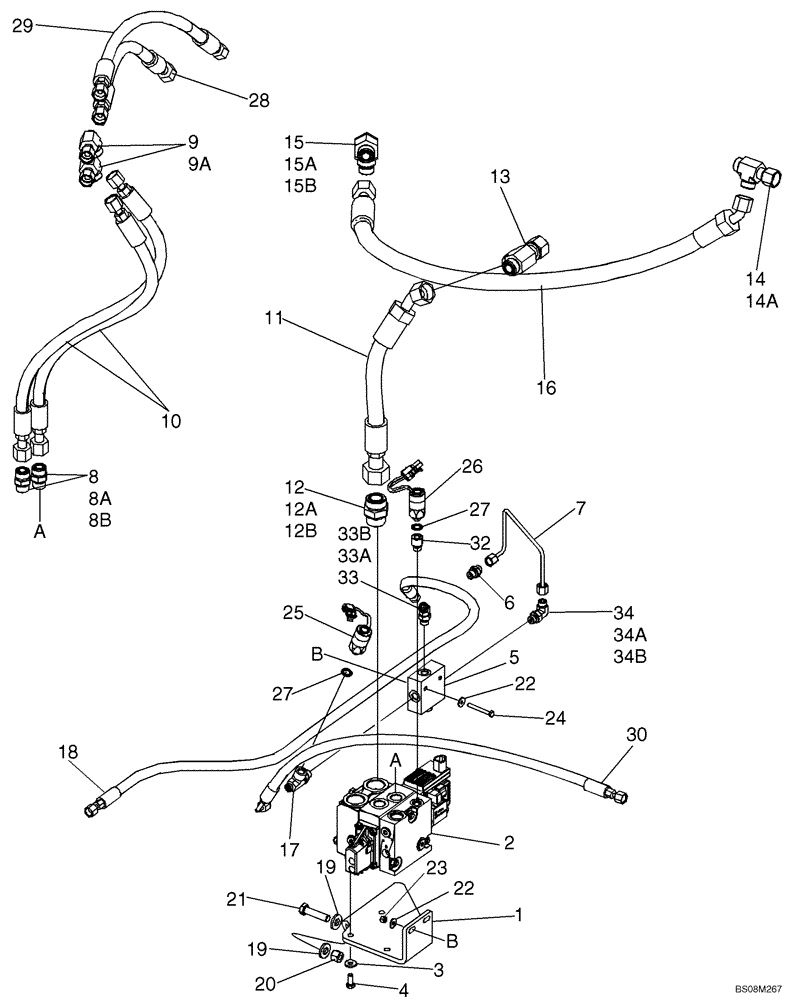

Запчасти Case 621E (05-13) - JOYSTICK STEERING - HYDRAULICS - AUXILIARY (05) - STEERING

1

84165625

BRACKET

Joystick Steering Valve

1шт.

2

84178373

VALVE

PVG32, Joystick Steering Proportional; See Figure 05-16

1шт.

3

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

4

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

5

87719987

VALVE

PVFC, See Figure 05-17

1шт.

6

87661868

HYD CONNECTOR

1шт.

7

84165082

HYD TUBE,0.25" OD

Steering

1шт.

8

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

Incl. Refs. 8A, 8B

2шт.

8a

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

8b

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

9

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl. Ref. 9A

2шт.

9a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

10

87756165

HOSE

Steering Cylinder Pressure, 900 mm (35 - 7/16 in)

2шт.

11

84165883

HOSE ASSY.

Tank, 376 (14 - 13-16 in)

1шт.

12

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. Refs. 12A, 12B

1шт.

12a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

12b

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss End

1шт.

13

701-417

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Female ORFS

Incl. Ref. 13A

1шт.

13a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

14

701-433

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl. Ref. 14A

1шт.

14a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

2шт.

15

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. Refs. 15A, 15B

1шт.

15a

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss

1шт.

15b

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

16

84168700

HOSE ASSY.

Suction, 965 mm (34 in)

1шт.

17

87477375

FITTING

1шт.

18

87653975

HOSE

Steering Load Sense, 1513 mm (59 - 9/16 in)

1шт.

19

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

6шт.

20

832-10412

NUT,M12 x 1.75, Cl 8

3шт.

21

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

3шт.

22

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

23

832-10406

NUT,M6 x 1, Cl 8

2шт.

24

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

2шт.

25

87476564

PRESSURE SWITCH

Steering Pressure

1шт.

26

84175670

PRESSURE SWITCH

Pilot Pressure

1шт.

27

396471A1

SEAL,11.71mm ID x 19.3mm OD x 1.68mm Thk

12 mm

2шт.

28

87492558

HOSE ASSY.

RH Rod, 500 mm (19 - 11/16 in)

1шт.

29

87492561

HOSE ASSY.

RH Base, 690 mm (27 - 5/32 in)

1шт.

30

87478817

FUEL HOSE,9.53 mm ID x 305.00 mm

Steering Load Sense

1шт.

32

87487329

FITTING,M14 x 1.5 ORB x M12 x 1.5 ORB

Reducer

1шт.

33

84172268

HYD CONNECTOR

ELBOW, Incl. Refs. 33A, 33B

1шт.

33a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

33b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

Boss Seal

1шт.

34

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl. Refs. 34A, 34B

1шт.

34a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

34b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.
